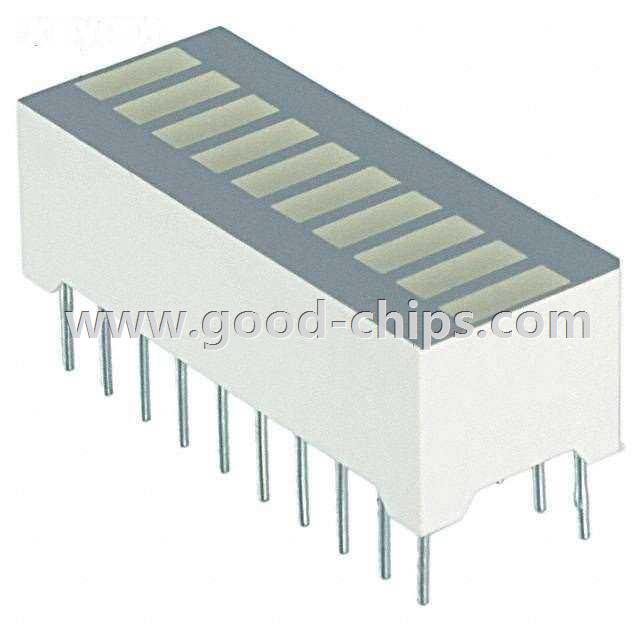

| Manufacturer Part Number: | DC7G3HWA |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs |
| Available Quantity: | 9077 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Circuit Board Indicator Bar - 10 Wide, DIP Green (x 7), Red (x 3) Diffused, White 2.2V Green, 2.25V Red 25mA Green, 25mA Red Rectangle with Flat Top, 5.08mm x 1.78mm Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC7G3HWA Datasheet |
| Internal Part Number | 898-DC7G3HWA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | DC10x.sldprt DC10x.pro DC10x.igs DC10x.stp | |
| Online Catalog | 10 Segment Bi-Color LED Bar Graph | |
| Category | Optoelectronics | |
| Family | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Color | Green (x 7), Red (x 3) | |
| Wavelength - Peak | 565nm, 700nm | |
| Configuration | Bar - 10 Wide, DIP | |
| Current | 25mA Green, 25mA Red | |
| Millicandela Rating | 12mcd Green, 1.9mcd red | |
| Viewing Angle | - | |
| Lens Type | Diffused, White | |
| Lens Style/Size | Rectangle with Flat Top, 5.08mm x 1.78mm | |
| Voltage Rating | 2.2V Green, 2.25V Red | |
| Mounting Type | Through Hole | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC7G3HWA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC7G3HWA is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of DC7G3HWA is new and unused, you can buy DC7G3HWA Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC7G3HWA.
