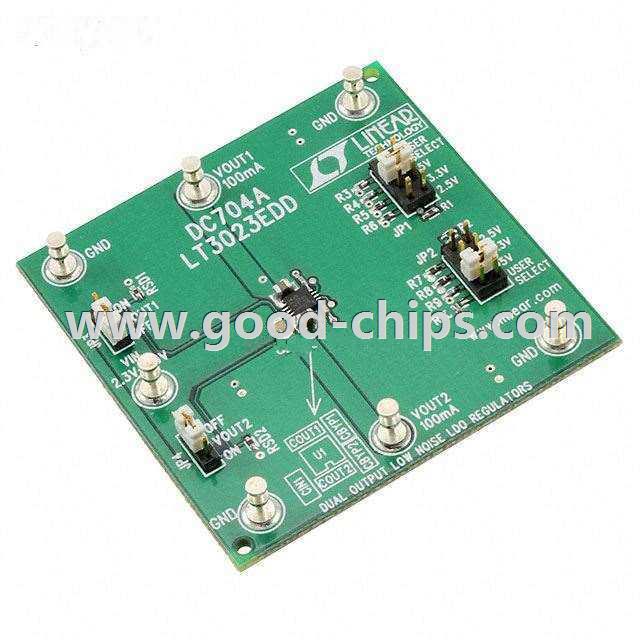

| Manufacturer Part Number: | DC704A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - Linear Voltage Regulators |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |
| Description: | LT3023 2 - Dual Channels per IC Positive Adjustable Linear Voltage Regulator Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC704A Datasheet |
| Internal Part Number | 898-DC704A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | DC704A Design File DC704A Schematic Development Tool Selector | |
| Online Catalog | LT3023 Demonstration Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Linear Voltage Regulators | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Channels per IC | 2 - Dual | |
| Voltage - Output | 2.5V, 3.3V or 5V | |
| Current - Output | 100mA, 100mA | |
| Voltage - Input | 2.3 V ~ 20 V | |
| Regulator Type | Positive Adjustable | |
| Operating Temperature | -40°C ~ 125°C | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | LT3023 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC704A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC704A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC704A is new and unused, you can buy DC704A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC704A.
