| Manufacturer Part Number: | DC688A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - LED Drivers |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |

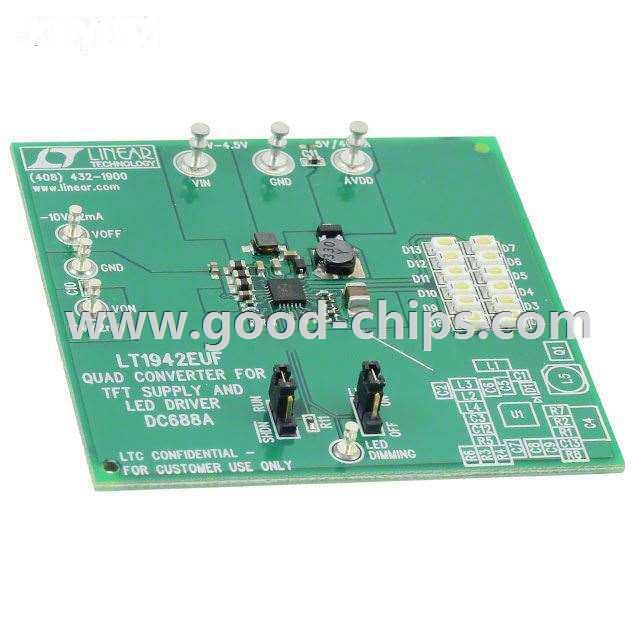

| Description: | LT1942 2, Non-Isolated Output LED Driver Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC688A Datasheet |
| Internal Part Number | 898-DC688A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | DC688A Design File DC688A Schematic Development Tool Selector Lighting Product Selector | |
| Reference Design Library | DC688A: 3 Out for TFT + 2x20mA @21V Max LED Driver | |
| Online Catalog | LT1942 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - LED Drivers | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Current - Output / Channel | 20mA | |
| Outputs and Type | 2, Non-Isolated | |
| Voltage - Output | - | |
| Features | - | |
| Voltage - Input | 3 V ~ 4.2 V | |
| Supplied Contents | Board | |
| Utilized IC / Part | LT1942 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC688A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC688A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC688A is new and unused, you can buy DC688A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC688A.
