DC684A

DC684A
Manufacturer Part Number:DC684A
Manufacturer:
Product Category:Evaluation and Demonstration Boards and Kits
Available Quantity:9011 Pieces
Unit Price:Quote by Email

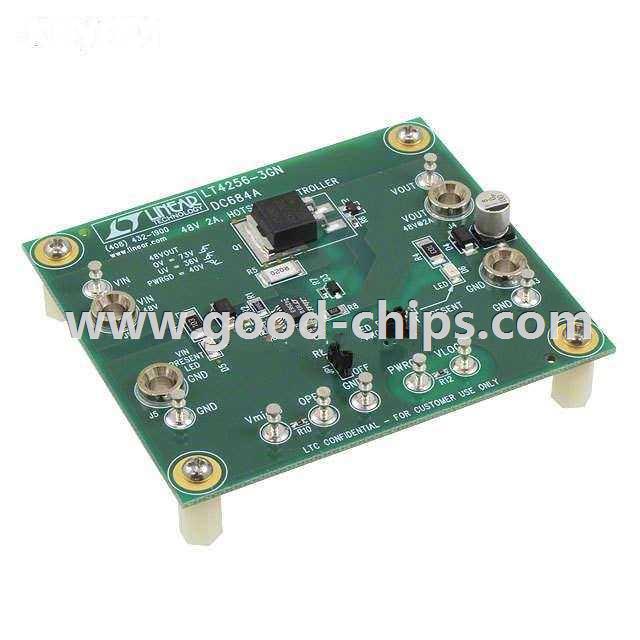

Description:LT4256-3 - Power Management, Hot Swap Controller Evaluation Board
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: DC684A Datasheet
DC684A´s Parameters
Internal Part Number898-DC684A
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Design ResourcesDC684A Design File Zip
DC684A Demo Schematic
Development Tool Selector
Online Catalog LT4256-3 Demonstration Board
CategoryProgrammers, Development Systems
FamilyEvaluation and Demonstration Boards and Kits
ManufacturerLinear Technology
Series-
Part StatusActive
Main PurposePower Management, Hot Swap Controller
EmbeddedNo
Utilized IC / PartLT4256-3
Primary Attributes-
Secondary AttributesLED Status Indicators
Supplied ContentsBoard
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement PartDC684A
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

DC684A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC684A is new and unused, you can buy DC684A Linear Technology with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for DC684A.
