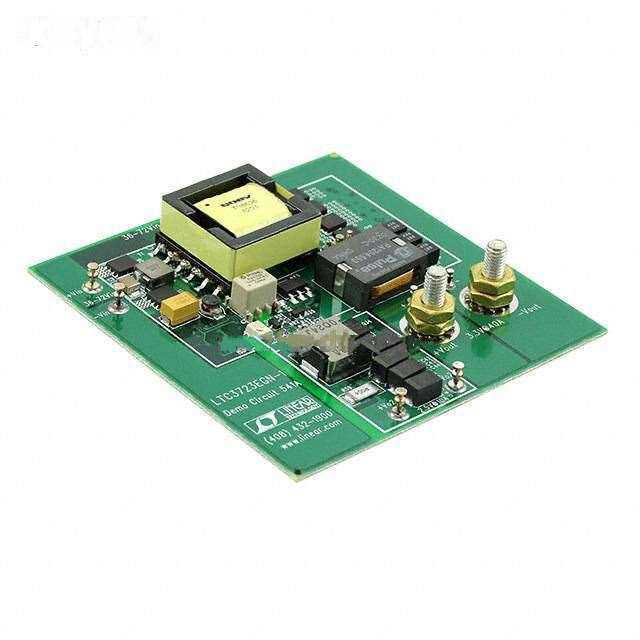

| Manufacturer Part Number: | DC541A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | LTC3723-1 - DC/DC, Step Down 2, Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC541A Datasheet |
| Internal Part Number | 898-DC541A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | DC541A Design File DC541A Schematic Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 2, Isolated | |
| Power - Output | - | |
| Voltage - Output | 2.5V, 3.3V | |
| Current - Output | 40A, 10A | |
| Voltage - Input | 36 V ~ 72 V | |
| Regulator Topology | - | |
| Frequency - Switching | 180kHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | LTC3723-1 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC541A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC541A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC541A is new and unused, you can buy DC541A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC541A.
