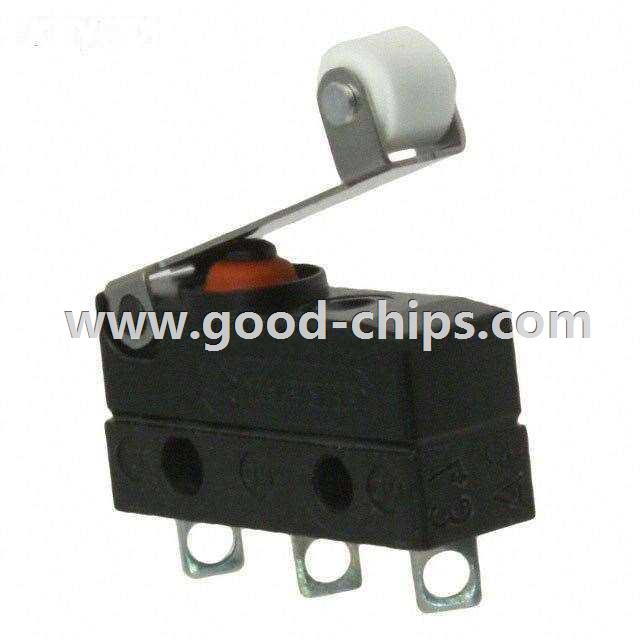

| Manufacturer Part Number: | DC2CA1RB |
|---|---|
| Manufacturer: | Cherry |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION SPDT 10A 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC2CA1RB Datasheet |
| Internal Part Number | 898-DC2CA1RB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Cherry | |
| Series | DC | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 10A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Lever, Roller | |
| Mounting Type | Chassis Mount | |
| Termination Style | Solder Lug | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | - | |
| Operating Force, Torque | 163gf | |
| Release Force | - | |
| Pretravel | 0.197" (5.0mm) | |
| Differential Travel | 0.031" (0.8mm) | |
| Overtravel | 0.060" (1.5mm) | |
| Operating Position | 0.622" (15.8mm) | |
| Mechanical Life | 1,000,000 Cycles | |
| Electrical Life | 6,000 Cycles | |
| Operating Temperature | -40°C ~ 120°C | |
| Standard Package | 560 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC2CA1RB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC2CA1RB is in stock for immediate shipping now. We are the distributor of Cherry all series components. The condition of DC2CA1RB is new and unused, you can buy DC2CA1RB Cherry with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC2CA1RB.
