Manufacturer Part Number: | DC2443A |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation Boards - Op Amps |
Available Quantity: | 9017 Pieces |
Unit Price: | Quote by Email |

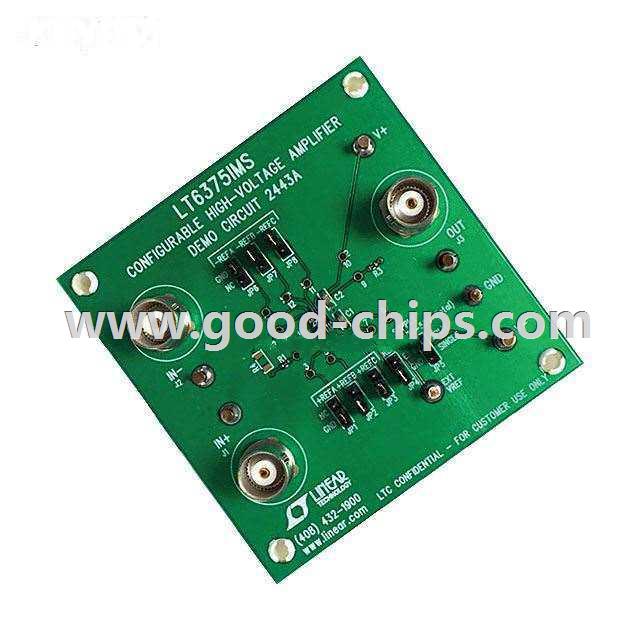

Description: | LT6375 1 - Single Channels per IC Difference Amplifier Evaluation Board |
Lead Free Status / RoHS Status: | Not applicable / Not applicable |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC2443A Datasheet |
Internal Part Number | 898-DC2443A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Linear Tech LT6375 Amplifier | Digi-Key Daily Linear Tech LT6375 Amplifier | Digi-Key Daily | |
Design Resources | DC2443A Design Files DC2443A Schematic | |
Featured Product | LT6375 ±270 V Common Mode Voltage Difference Amplifier | |
Online Catalog | LT6375 Demonstration Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Op Amps | |
Manufacturer | Linear Technology | |
Series | - | |
Part Status | Active | |
Channels per IC | 1 - Single | |
Amplifier Type | Difference | |
Output Type | Single-Ended, Rail-to-Rail | |
Slew Rate | 2.4 V/µs | |
-3db Bandwidth | 300kHz | |
Current - Output / Channel | 25mA | |
Operating Temperature | -40°C ~ 85°C | |
Current - Supply (Main IC) | 350µA | |
Voltage - Supply, Single/Dual (±) | 3.3 V ~ 50 V, ±1.65V ~ 25 V | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | LT6375 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC2443A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC2443A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC2443A is new and unused, you can buy DC2443A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC2443A.
