Manufacturer Part Number: | DC2422A-A |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9015 Pieces |
Unit Price: | Quote by Email |

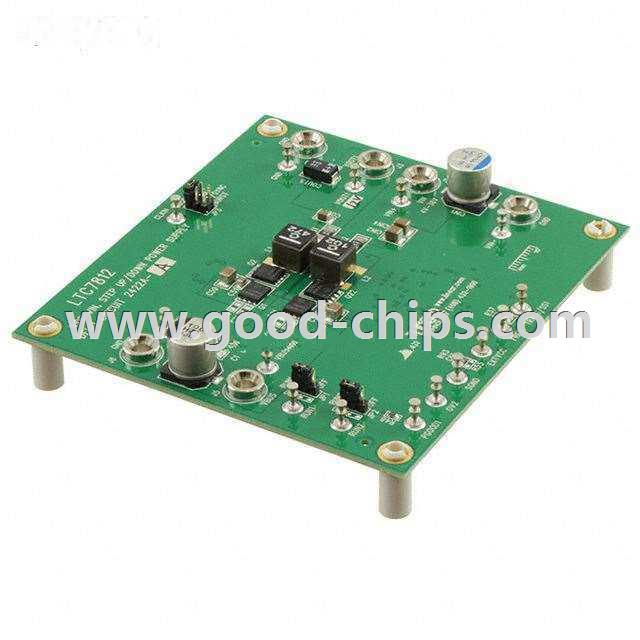

Description: | LTC7812 - DC/DC, Step Up or Down 1, Non-Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Not applicable / Not applicable |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC2422A-A Datasheet |
Internal Part Number | 898-DC2422A-A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | DC2422A Design Files DC2422A Schematic | |
Online Catalog | LTC7812EUH Demonstration Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Linear Technology | |
Series | - | |
Part Status | Active | |
Main Purpose | DC/DC, Step Up or Down | |
Outputs and Type | 1, Non-Isolated | |
Power - Output | - | |
Voltage - Output | 12V | |
Current - Output | 8A | |
Voltage - Input | 4 V ~ 36 V | |
Regulator Topology | Boost, Buck | |
Frequency - Switching | - | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | LTC7812 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC2422A-A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC2422A-A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC2422A-A is new and unused, you can buy DC2422A-A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC2422A-A.
