Manufacturer Part Number: | DC2420A |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9014 Pieces |
Unit Price: | Quote by Email |

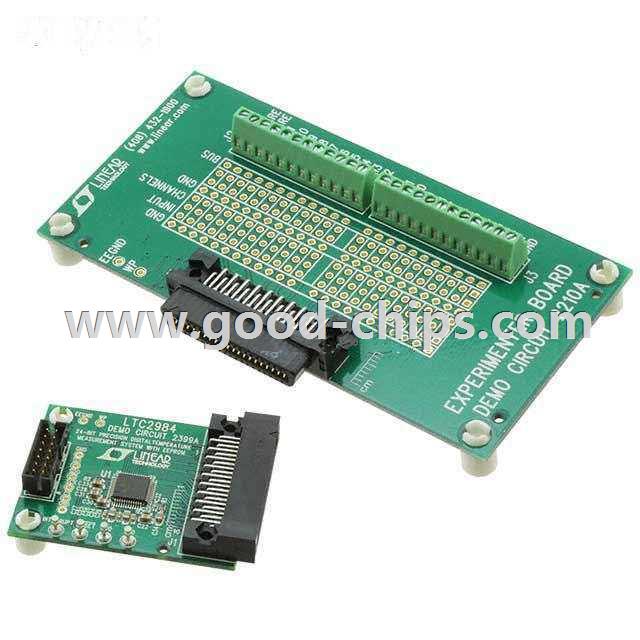

Description: | LTC2984 - Power Management, Thermal Management Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC2420A Datasheet |
Internal Part Number | 898-DC2420A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Software Download | QuikEval System DC2399A Design Files DC2399A Schematic LTC2984 Software | |
Design Resources | DC2210A Schematic DC2210A Design File Development Tool Selector | |
Online Catalog | LTC2984 Demonstration Board and Starter Kit | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Linear Technology | |
Series | - | |
Part Status | Active | |
Main Purpose | Power Management, Thermal Management | |
Embedded | - | |
Utilized IC / Part | LTC2984 | |
Primary Attributes | - | |
Secondary Attributes | Graphical User Interface | |
Supplied Contents | 2 Boards, Cable | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC2420A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC2420A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC2420A is new and unused, you can buy DC2420A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC2420A.
