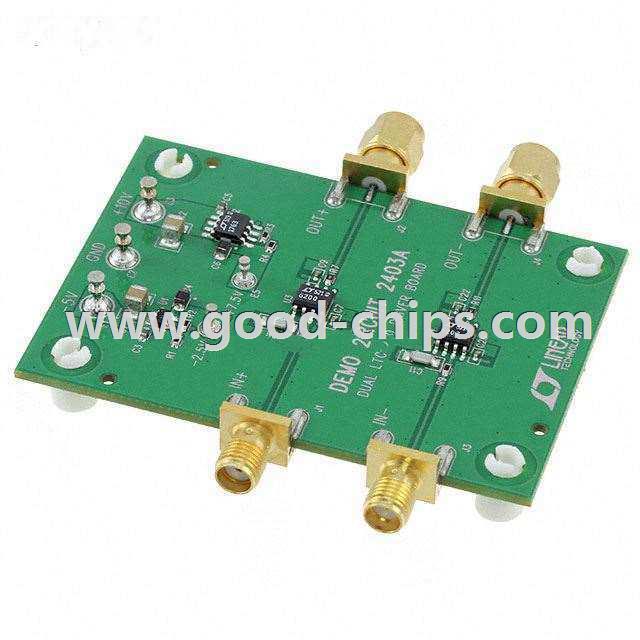

| Manufacturer Part Number: | DC2403A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - Op Amps |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | LT6200 1 - Single Channels per IC General Purpose Amplifier Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC2403A Datasheet |
| Internal Part Number | 898-DC2403A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Linear Tech LTC2387 SAR Product Overview | Digi-Key Daily | |
| Design Resources | DC2403A Design Files DC2403A Schematic | |
| Featured Product | LTC2387 18-Bit, 15Msps SAR ADC | |
| Online Catalog | LT6200 Demonstration Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Op Amps | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Channels per IC | 1 - Single | |
| Amplifier Type | General Purpose | |
| Output Type | Single-Ended, Rail-to-Rail | |
| Slew Rate | 50 V/µs | |
| -3db Bandwidth | - | |
| Current - Output / Channel | 90mA | |
| Operating Temperature | -40°C ~ 125°C | |
| Current - Supply (Main IC) | 20mA | |
| Voltage - Supply, Single/Dual (±) | 2.5 V ~ 12.6 V, ±1.25 V ~ 6.3 V | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | LT6200 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC2403A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC2403A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC2403A is new and unused, you can buy DC2403A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC2403A.
