Manufacturer Part Number: | DC2376A-A |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation Boards - Digital to Analog Converters (DACs) |
Available Quantity: | 9015 Pieces |
Unit Price: | Quote by Email |

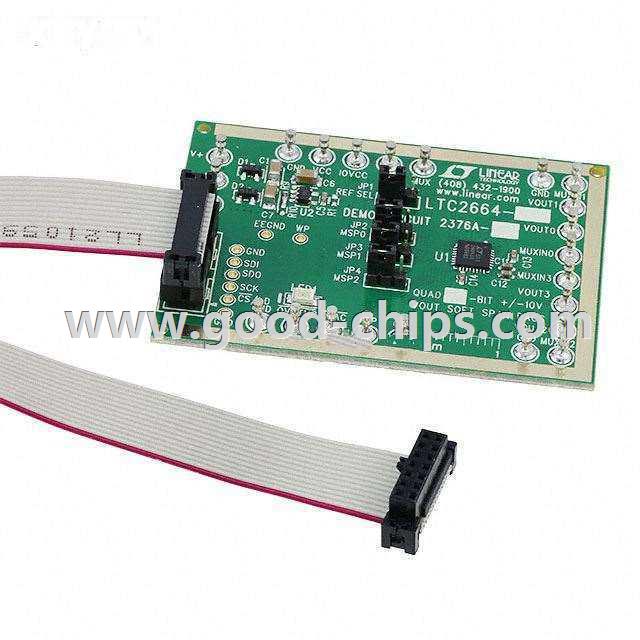

Description: | LTC2664-16 16 Bit Digital to Analog Converter (DAC) Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC2376A-A Datasheet |
Internal Part Number | 898-DC2376A-A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Software Download | QuikEval System LTSketchbook Arduino 1.04 IDE | |
Design Resources | DC2376A Design Files DC2376A Schematic | |
Online Catalog | LTC2664 Demonstration Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Digital to Analog Converters (DACs) | |
Manufacturer | Linear Technology | |
Series | SoftSpan™ | |
Part Status | Active | |
Number of DAC's | 4 | |
Number of Bits | 16 | |
Sampling Rate (Per Second) | - | |
Data Interface | SPI | |
Settling Time | 20µs | |
DAC Type | Voltage | |
Operating Temperature | -40°C ~ 85°C | |
Supplied Contents | Board | |
Utilized IC / Part | LTC2664-16 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC2376A-A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC2376A-A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC2376A-A is new and unused, you can buy DC2376A-A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC2376A-A.
