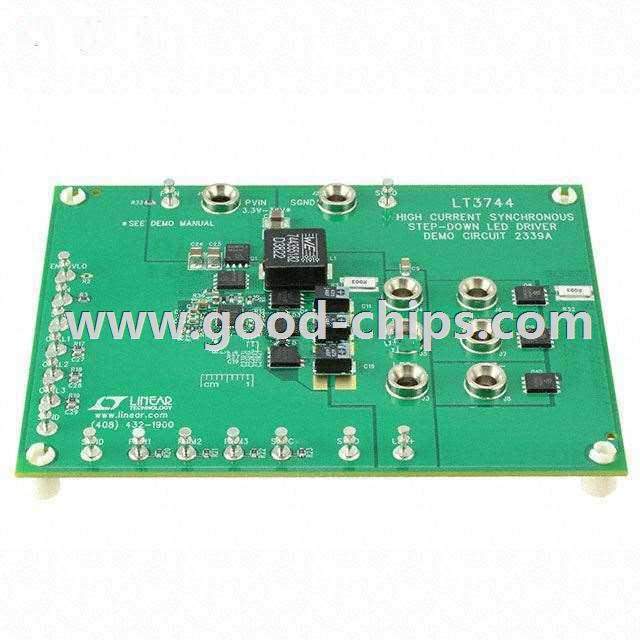

| Manufacturer Part Number: | DC2339A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - LED Drivers |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | LT3744 3, Non-Isolated Output LED Driver Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC2339A Datasheet |
| Internal Part Number | 898-DC2339A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | DC2339A Desing Files DC2339A Schematic Lighting Product Selector | |
| Online Catalog | LT3744 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - LED Drivers | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Current - Output / Channel | 20A | |
| Outputs and Type | 3, Non-Isolated | |
| Voltage - Output | 6.05V | |
| Features | Dimmable | |
| Voltage - Input | 5.5 V ~ 36 V | |
| Supplied Contents | Board | |
| Utilized IC / Part | LT3744 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC2339A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC2339A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC2339A is new and unused, you can buy DC2339A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC2339A.
