Manufacturer Part Number: | DC2296A |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation Boards - Sensors |
Available Quantity: | 9012 Pieces |
Unit Price: | Quote by Email |

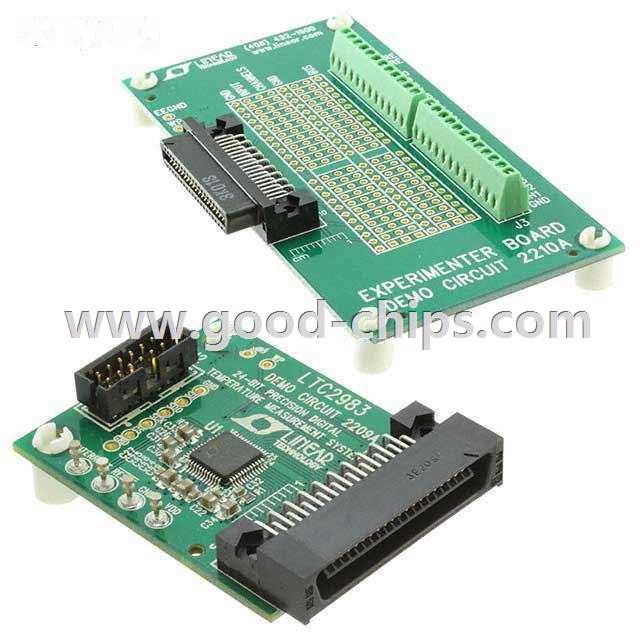

Description: | LTC2983 - Temperature Sensor Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC2296A Datasheet |
Internal Part Number | 898-DC2296A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | LTC2983 High Accuracy Digital Temperature Measurement System | |
Software Download | QuikEval System LTC2983 Software | |
Design Resources | Development Tool Selector | |
Featured Product | LTC2983 - Multi-Sensor, High-Accuracy, Digital Temperature Measurement System | |
Online Catalog | LTC2983 Demo Board and Starter Kit | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Sensors | |
Manufacturer | Linear Technology | |
Series | - | |
Part Status | Active | |
Sensor Type | Temperature | |
Sensing Range | - | |
Interface | SPI | |
Sensitivity | - | |
Voltage - Supply | 2.85 V ~ 5.25 V | |
Embedded | - | |
Supplied Contents | 2 Boards | |
Utilized IC / Part | LTC2983 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC2296A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC2296A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC2296A is new and unused, you can buy DC2296A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC2296A.
