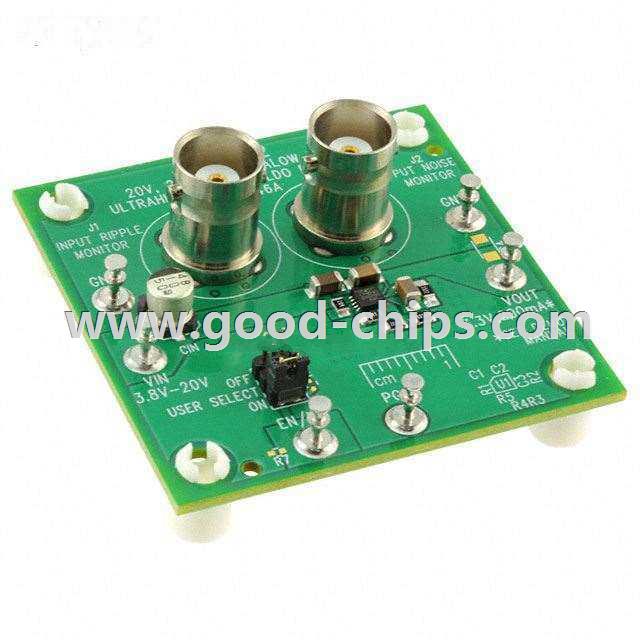

| Manufacturer Part Number: | DC2246A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - Linear Voltage Regulators |
| Available Quantity: | 9014 Pieces |
| Unit Price: | Quote by Email |
| Description: | LT3042 1 - Single Channels per IC Positive Adjustable Linear Voltage Regulator Evaluation Board |
| Lead Free Status / RoHS Status: | Not applicable / Not applicable |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC2246A Datasheet |
| Internal Part Number | 898-DC2246A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | LTspice IV for Windows LTspice IV for Mac OS X 10.7+ LT3042 Demo Circuit | |
| Design Resources | DC2246A Design Files DC2246A Schematic | |
| Online Catalog | LT3042EDD Demonstration Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Linear Voltage Regulators | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Channels per IC | 1 - Single | |
| Voltage - Output | 3.3V | |
| Current - Output | 200mA | |
| Voltage - Input | 3.8 V ~ 20 V | |
| Regulator Type | Positive Adjustable | |
| Operating Temperature | -40°C ~ 125°C | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | LT3042 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC2246A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC2246A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC2246A is new and unused, you can buy DC2246A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC2246A.
