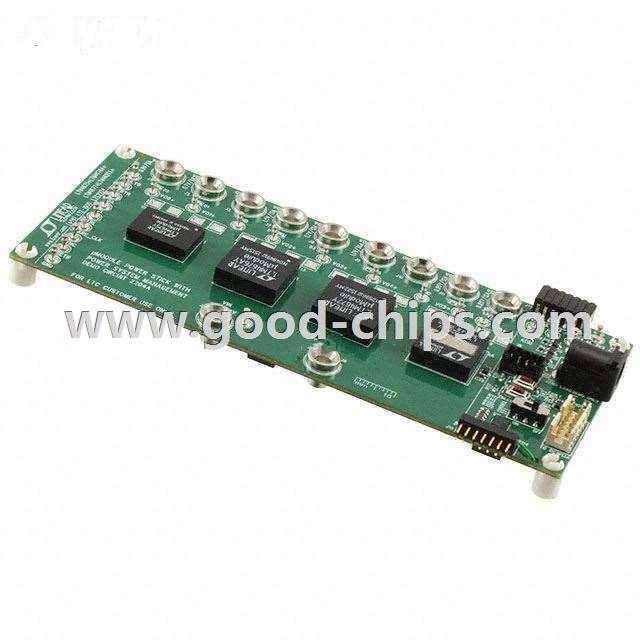

| Manufacturer Part Number: | DC2204A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | LTC2974, LTM4620A, LTM4675, LTM4676A, LTM4677 µModule® DC/DC Converter 7, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Not applicable / Not applicable |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC2204A Datasheet |
| Internal Part Number | 898-DC2204A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | LTM4675, LTM4676A, LTM4677, LTM4620A and LTC2974 Demonstration Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Linear Technology | |
| Series | µModule® | |
| Part Status | Active | |
| Main Purpose | DC/DC Converter | |
| Outputs and Type | 7, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 0.7V, 0.85V, 0.9V, 0.95V, 1V, 1.2V, 1.5V | |
| Current - Output | 36A, 13A, 13A, 13A, 13A, 9A, 9A | |
| Voltage - Input | 4.5 V ~ 15 V | |
| Regulator Topology | - | |
| Frequency - Switching | - | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | LTC2974, LTM4620A, LTM4675, LTM4676A, LTM4677 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC2204A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC2204A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC2204A is new and unused, you can buy DC2204A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC2204A.
