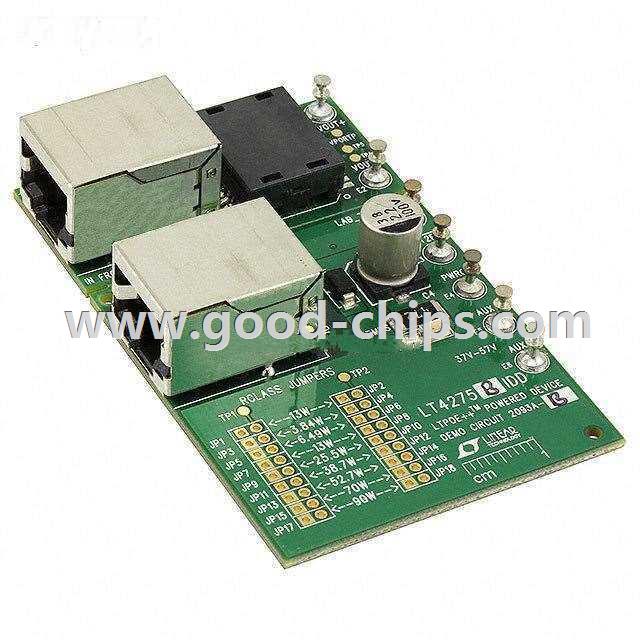

Manufacturer Part Number: | DC2093A-B |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9012 Pieces |
Unit Price: | Quote by Email |
Description: | LT4275B, LT4321 - Power Management, Power Over Ethernet (POE) Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC2093A-B Datasheet |
Internal Part Number | 898-DC2093A-B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | LT4321 Power over Ethernet Ideal Diode Bridge | |
Video File | LT4321/LT4275 Controller TechClip - Cooler Temperature PD LT4321/LT4275 Controller TechClip - Increased Available PD Power LT4321/LT4275 Controller TechClip - LTPoE++ Hardware | |
Design Resources | DC2093A Design Files DC2093A Schematic Development Tool Selector | |
Online Catalog | LT4275A, B, C and LT4321 Demonstration Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Linear Technology | |
Series | - | |
Part Status | Active | |
Main Purpose | Power Management, Power Over Ethernet (POE) | |
Embedded | No | |
Utilized IC / Part | LT4275B, LT4321 | |
Primary Attributes | - | |
Secondary Attributes | LED Status Indicators | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC2093A-B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC2093A-B is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC2093A-B is new and unused, you can buy DC2093A-B Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC2093A-B.
