| Manufacturer Part Number: | DC1975A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |

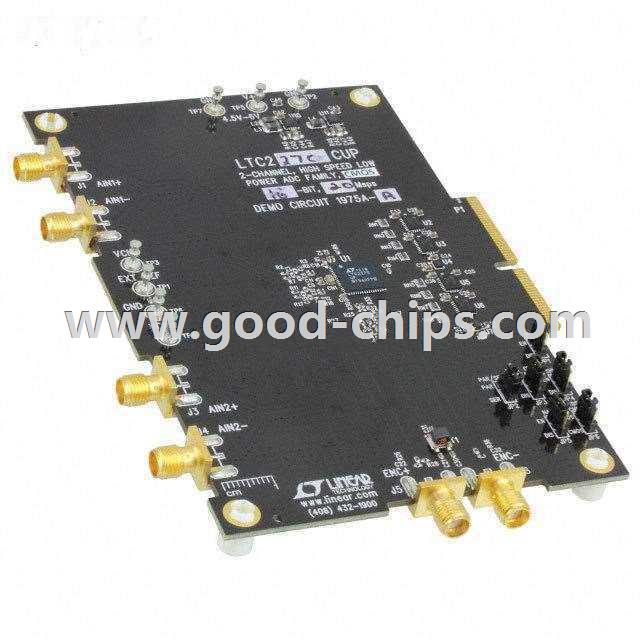

| Description: | LTC2270 - 16 Bit 20M Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1975A Datasheet |
| Internal Part Number | 898-DC1975A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | PScope | |
| Design Resources | DC1975A Design Files DC1975A Schematic Development Tool Selector | |
| Featured Product | High Speed ADCs | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Obsolete | |
| Number of A/D Converters | 2 | |
| Number of Bits | 16 | |
| Sampling Rate (Per Second) | 20M | |
| Data Interface | Parallel | |
| Input Range | 2.1 Vpp | |
| Power (Typ) @ Conditions | 299mW @ 20MSPS | |
| Utilized IC / Part | LTC2270 | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1975A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1975A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1975A is new and unused, you can buy DC1975A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1975A.
