| Manufacturer Part Number: | DC1959B-D |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

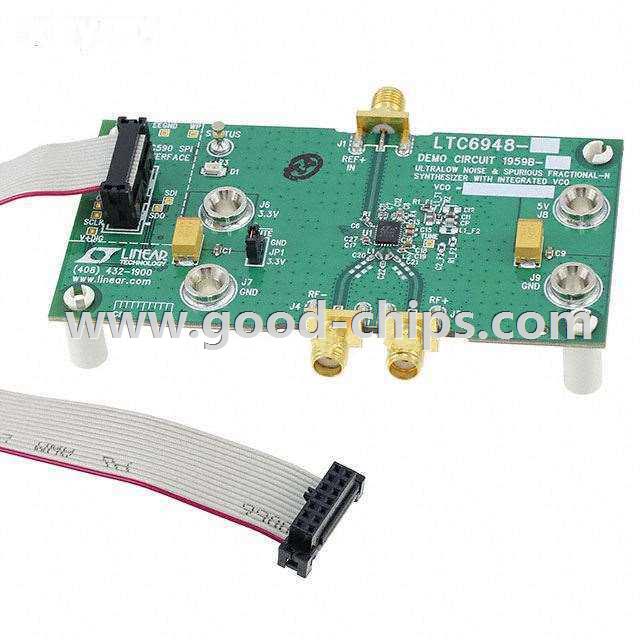

| Description: | LTC6948-4 - Timing, Frequency Synthesizer Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1959B-D Datasheet |
| Internal Part Number | 898-DC1959B-D | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | QuikEval System FracNWizardSetup LTSketchbook Arduino 1.04 IDE Linduino Sketchbook | |
| Online Catalog | LTC6948-4 Demonstration Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Timing, Frequency Synthesizer | |
| Embedded | - | |
| Utilized IC / Part | LTC6948-4 | |
| Primary Attributes | Single Fractional-N PLL with VCO | |
| Secondary Attributes | SMA Connectors | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1959B-D | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1959B-D is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1959B-D is new and unused, you can buy DC1959B-D Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1959B-D.
