Manufacturer Part Number: | DC1959A-B |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |

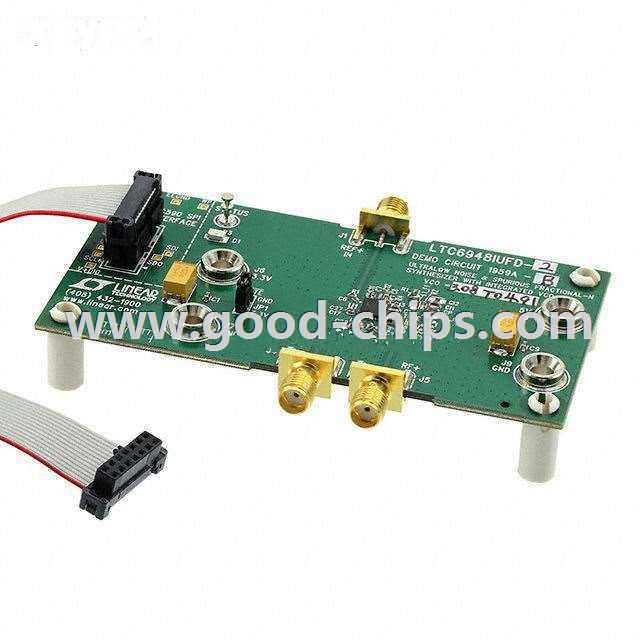

Description: | LTC6948-2 - Timing, Frequency Synthesizer Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC1959A-B Datasheet |
Internal Part Number | 898-DC1959A-B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Software Download | QuikEval System PLLWizardSetup w/o .NET 2.0 installer PLLWizard™, with .NET 2.0 installer FracNWizardSetup ClockWizardSetup | |
Design Resources | Development Tool Selector | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Linear Technology | |
Series | - | |
Part Status | Active | |
Main Purpose | Timing, Frequency Synthesizer | |
Embedded | - | |
Utilized IC / Part | LTC6948-2 | |
Primary Attributes | Single Fractional-N PLL with VCO | |
Secondary Attributes | SMA Connectors | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC1959A-B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC1959A-B is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1959A-B is new and unused, you can buy DC1959A-B Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1959A-B.
