| Manufacturer Part Number: | DC1894B |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9020 Pieces |
| Unit Price: | Quote by Email |

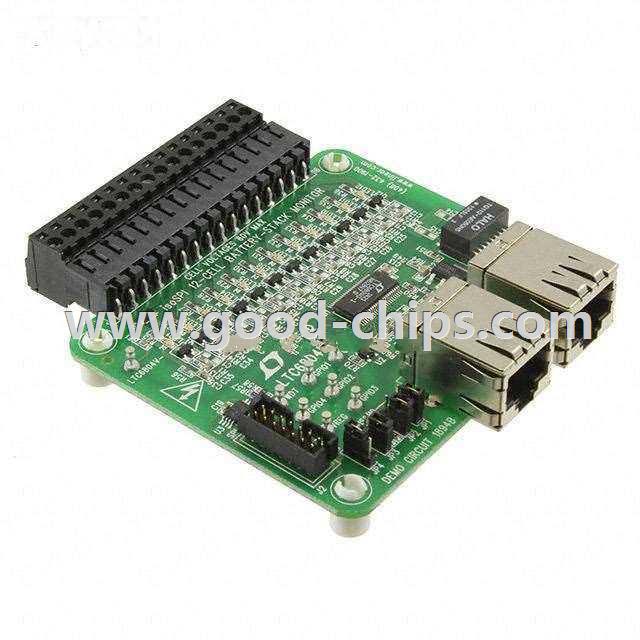

| Description: | LTC6804-1 - Power Management, Battery Monitor Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1894B Datasheet |
| Internal Part Number | 898-DC1894B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | QuikEval System LT6804 GUI Software | |
| Design Resources | DC1894B Design File DC1894B Schematic | |
| Online Catalog | LTC6804-1 Demonstration Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Power Management, Battery Monitor | |
| Embedded | No | |
| Utilized IC / Part | LTC6804-1 | |
| Primary Attributes | Isolated | |
| Secondary Attributes | Graphical User Interface | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1894B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1894B is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1894B is new and unused, you can buy DC1894B Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1894B.
