Manufacturer Part Number: | DC1892A |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |

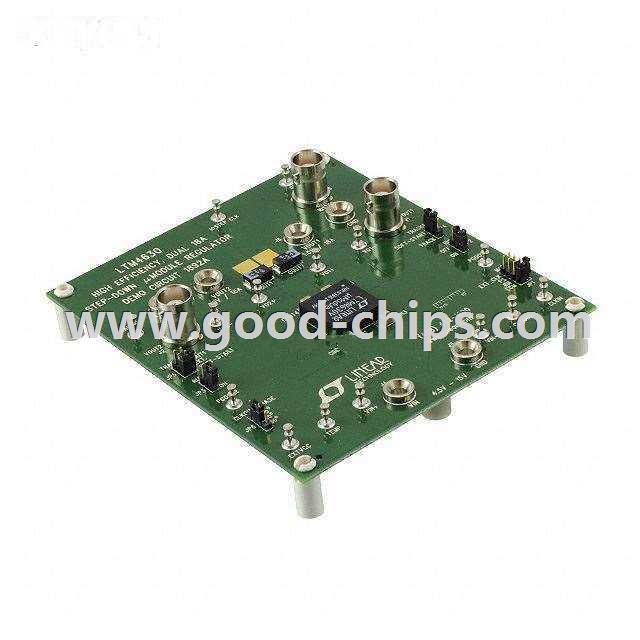

Description: | LTM4630 µModule® DC/DC, Step Down 2, Non-Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC1892A Datasheet |
Internal Part Number | 898-DC1892A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Software Download | LTspice IV for Windows LTspice IV for Mac OS X 10.7+ LTM4630 Demo Circuit | |
Design Resources | DC1892A Design Files DC1892A Schematic Development Tool Selector | |
Online Catalog | LTM4630EV Demonstration Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Linear Technology | |
Series | µModule® | |
Part Status | Active | |
Main Purpose | DC/DC, Step Down | |
Outputs and Type | 2, Non-Isolated | |
Power - Output | - | |
Voltage - Output | 1V, 1.5V | |
Current - Output | 18A, 18A | |
Voltage - Input | 4.5 V ~ 15 V | |
Regulator Topology | Buck | |
Frequency - Switching | 500kHz | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | LTM4630 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC1892A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC1892A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1892A is new and unused, you can buy DC1892A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1892A.
