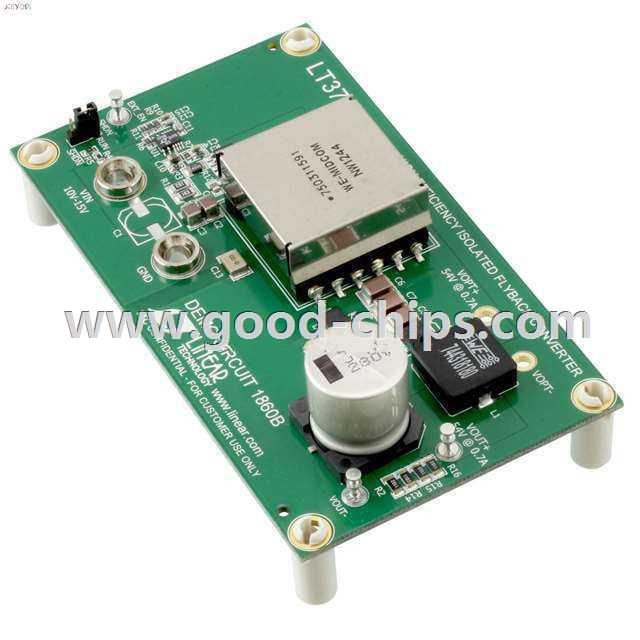

| Manufacturer Part Number: | DC1860B |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | LT3748 - DC/DC Converter 1, Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1860B Datasheet |
| Internal Part Number | 898-DC1860B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | DC1860B Design File DC1860B Schematic Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | DC/DC Converter | |
| Outputs and Type | 1, Isolated | |
| Power - Output | - | |
| Voltage - Output | 52.5V | |
| Current - Output | 700mA | |
| Voltage - Input | 10 V ~ 15 V | |
| Regulator Topology | Flyback | |
| Frequency - Switching | - | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | LT3748 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1860B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1860B is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1860B is new and unused, you can buy DC1860B Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1860B.
