Stocking distributor of Electronic Components
Email: [email protected]

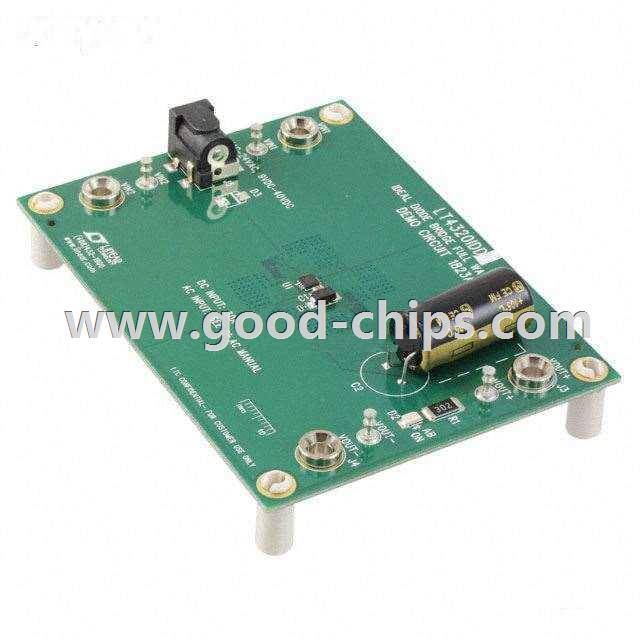

| Manufacturer Part Number: | DC1823A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LT4320 - Power Management, Ideal Diode Bridge Controller Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1823A Datasheet |
| Internal Part Number | 898-DC1823A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LT4320 Ideal Diode Bridge Controller | |
| Design Resources | DC1823A Design Files DC1823A Schematic Development Tool Selector | |
| Reference Design Library | DC1823A: Ideal Bridge, 1.5A@12~24VAC, 30A@9~40VDC | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Obsolete | |
| Main Purpose | Power Management, Ideal Diode Bridge Controller | |
| Embedded | No | |
| Utilized IC / Part | LT4320 | |
| Primary Attributes | 4-Channel (Quad) | |
| Secondary Attributes | LED Status Indicators | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1823A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1823A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1823A is new and unused, you can buy DC1823A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1823A.
