| Manufacturer Part Number: | DC1815A-B |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9014 Pieces |
| Unit Price: | Quote by Email |

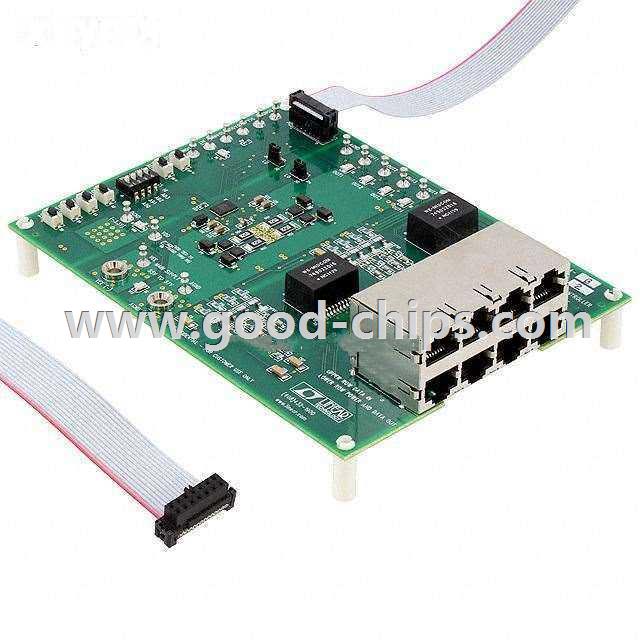

| Description: | LTC4266A-2 - Power Management, Power Over Ethernet (POE) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1815A-B Datasheet |
| Internal Part Number | 898-DC1815A-B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LTPoe++ Controller Family Overview LT4321 Power over Ethernet Ideal Diode Bridge | |
| Software Download | QuikEval System | |
| Design Resources | DC1815A Design File DC1815A Schematic Development Tool Selector | |
| Online Catalog | LTC4266A-1/2/3/4 Demonstration Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Power Management, Power Over Ethernet (POE) | |
| Embedded | No | |
| Utilized IC / Part | LTC4266A-2 | |
| Primary Attributes | - | |
| Secondary Attributes | - | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1815A-B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1815A-B is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1815A-B is new and unused, you can buy DC1815A-B Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1815A-B.
