Manufacturer Part Number: | DC1812A-C |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9014 Pieces |
Unit Price: | Quote by Email |

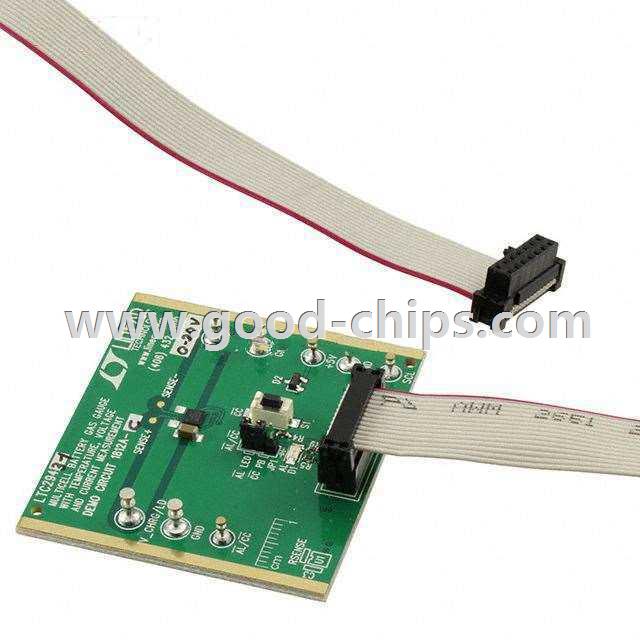

Description: | LTC2943-1 - Power Management, Battery Gauge Evaluation Board |
Lead Free Status / RoHS Status: | Not applicable / Not applicable |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC1812A-C Datasheet |
Internal Part Number | 898-DC1812A-C | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Software Download | QuikEval System LTSketchbook Arduino 1.04 IDE Linduino Sketchbook | |
Design Resources | DC1812A Design Files DC1812A Schematic | |
Online Catalog | LTC2943 and LTC2943-1 Demonstration Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Linear Technology | |
Series | - | |
Part Status | Active | |
Main Purpose | Power Management, Battery Gauge | |
Embedded | No | |
Utilized IC / Part | LTC2943-1 | |
Primary Attributes | - | |
Secondary Attributes | LED Status Indicators | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC1812A-C | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC1812A-C is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1812A-C is new and unused, you can buy DC1812A-C Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1812A-C.
