Manufacturer Part Number: | DC1746A-A |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9016 Pieces |
Unit Price: | Quote by Email |

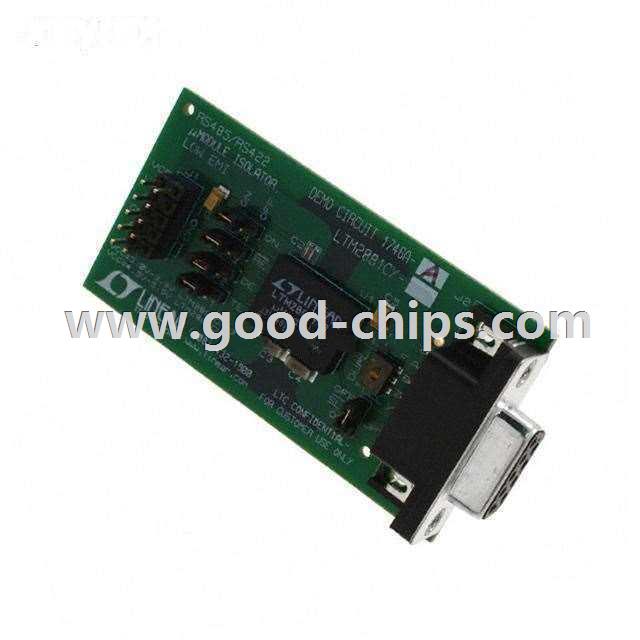

Description: | LTM2881 µModule® Series Interface, Transceiver RS-422/RS-485 Evaluation Board |
Lead Free Status / RoHS Status: | Not applicable / Not applicable |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC1746A-A Datasheet |
Internal Part Number | 898-DC1746A-A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | μModule: LTM2881 - Complete Isolated RS485/RS422 μModule Transceiver + Power | |
Design Resources | DC1746A-(A,B) Design Files Development Tool Selector | |
Online Catalog | LTM2881-3 µModule® Isolator Demo Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Linear Technology | |
Series | µModule® | |
Part Status | Active | |
Main Purpose | Interface, Transceiver RS-422/RS-485 | |
Embedded | No | |
Utilized IC / Part | LTM2881 | |
Primary Attributes | 3V Supply, Isolated, Transceiver + Power | |
Secondary Attributes | - | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC1746A-A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC1746A-A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1746A-A is new and unused, you can buy DC1746A-A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1746A-A.
