| Manufacturer Part Number: | DC1743A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |

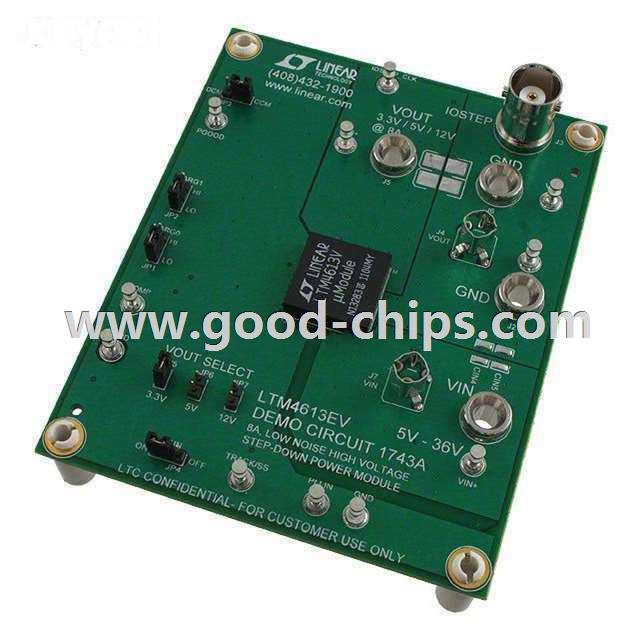

| Description: | LTM4613 µModule® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Not applicable / Not applicable |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1743A Datasheet |
| Internal Part Number | 898-DC1743A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | µModule® Family of EN55022 Class B Certified Regulators | |
| Software Download | LTspice IV for Windows LTspice IV for Mac OS X 10.7+ | |
| Design Resources | DC1743A Design Files Development Tool Selector | |
| Reference Design Library | DC1743A: 3.3V, 5V, 12V @ 8A, 5 ~ 36V in | |
| Online Catalog | LTM4613 Demo Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Linear Technology | |
| Series | µModule® | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 1, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 3.3V, 5V, 12V | |
| Current - Output | 8A | |
| Voltage - Input | 5 V ~ 36 V | |
| Regulator Topology | Buck | |
| Frequency - Switching | 165kHz, 250kHz, 600kHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | LTM4613 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1743A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1743A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1743A is new and unused, you can buy DC1743A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1743A.
