| Manufacturer Part Number: | DC1649A-A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9018 Pieces |
| Unit Price: | Quote by Email |

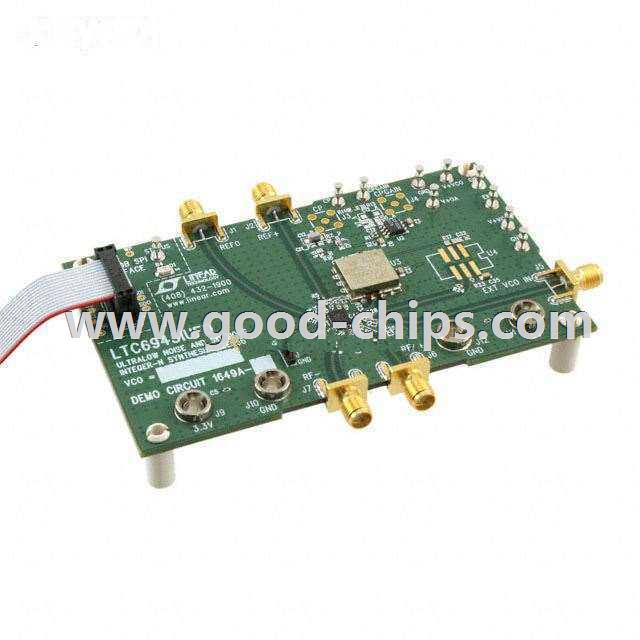

| Description: | LTC6945 - Timing, Frequency Synthesizer Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1649A-A Datasheet |
| Internal Part Number | 898-DC1649A-A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | QuikEval System PLLWizardSetup w/o .NET 2.0 installer PLLWizard™, with .NET 2.0 installer | |
| Design Resources | DC1649A Design Files DC1649A Schematic Development Tool Selector | |
| Online Catalog | LTC6945 Demonstration Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Timing, Frequency Synthesizer | |
| Embedded | No | |
| Utilized IC / Part | LTC6945 | |
| Primary Attributes | Single Integer-N PLL with VCO | |
| Secondary Attributes | 6GHz | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1649A-A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1649A-A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1649A-A is new and unused, you can buy DC1649A-A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1649A-A.
