Manufacturer Part Number: | DC1626A-B |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9015 Pieces |
Unit Price: | Quote by Email |

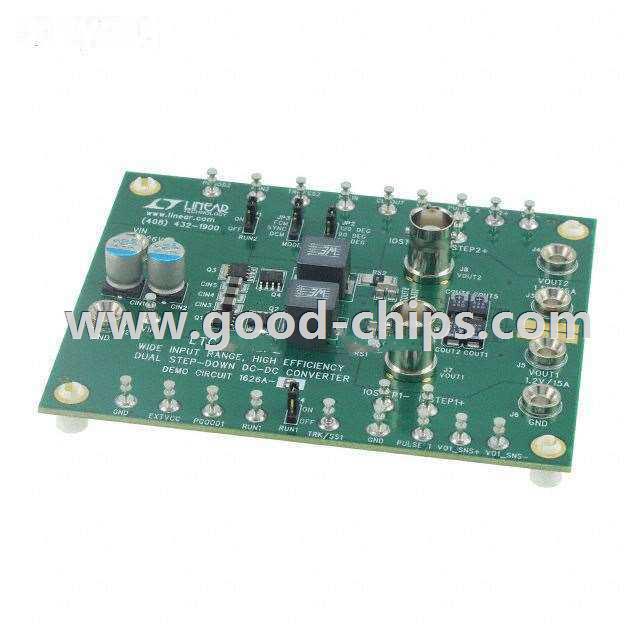

Description: | LTC3838 - DC/DC, Step Down 2, Non-Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC1626A-B Datasheet |
Internal Part Number | 898-DC1626A-B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Software Download | LTspice IV for Windows LTspice IV for Mac OS X 10.7+ LTC3838 Demo Circuit | |
Design Resources | DC1626A Design File DC1626A Schematic Development Tool Selector | |
Online Catalog | LTC3838 Demonstration Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Linear Technology | |
Series | - | |
Part Status | Active | |
Main Purpose | DC/DC, Step Down | |
Outputs and Type | 2, Non-Isolated | |
Power - Output | - | |
Voltage - Output | 1.2V, 1.5V | |
Current - Output | 15A, 15A | |
Voltage - Input | 4.5 V ~ 26 V | |
Regulator Topology | Buck | |
Frequency - Switching | 300kHz | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | LTC3838 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC1626A-B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC1626A-B is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1626A-B is new and unused, you can buy DC1626A-B Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1626A-B.
