| Manufacturer Part Number: | DC1614A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |

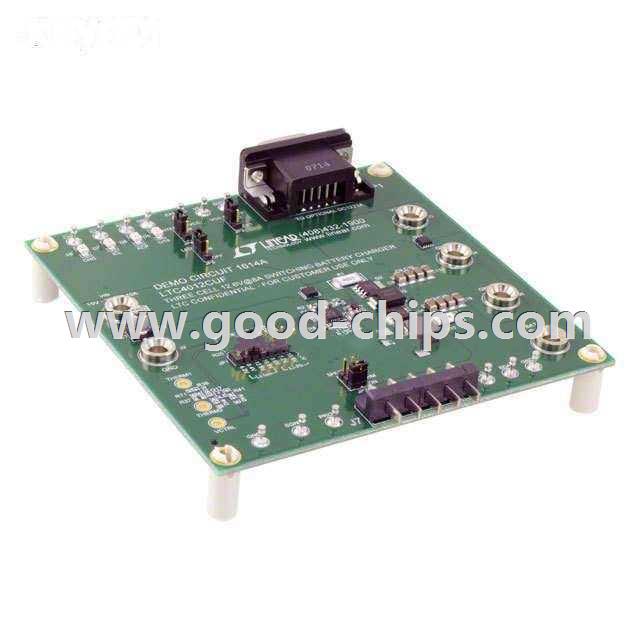

| Description: | LTC4012 PowerPath™ Series Power Management, Battery Charger Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1614A Datasheet |
| Internal Part Number | 898-DC1614A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | DC1614A Demo Brd Software | |
| Design Resources | DC1614A Design Files DC1614A Schematic Development Tool Selector | |
| Online Catalog | LTC4012 Demonstration Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Linear Technology | |
| Series | PowerPath™ | |
| Part Status | Active | |
| Main Purpose | Power Management, Battery Charger | |
| Embedded | - | |
| Utilized IC / Part | LTC4012 | |
| Primary Attributes | - | |
| Secondary Attributes | - | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1614A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1614A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1614A is new and unused, you can buy DC1614A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1614A.
