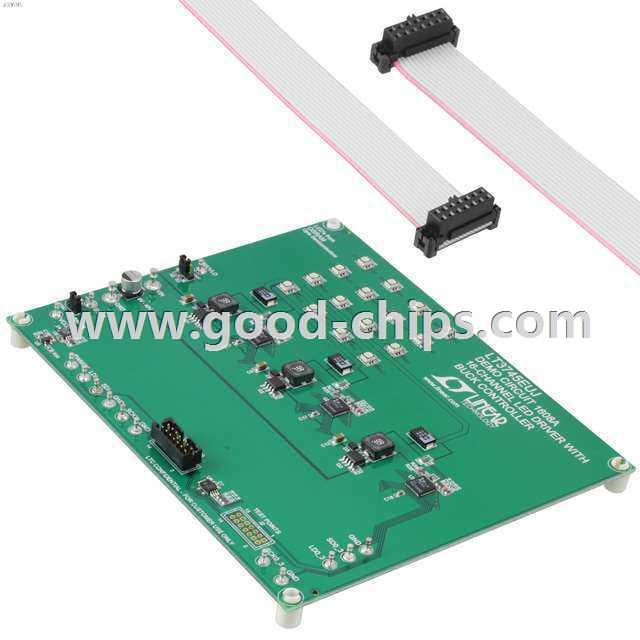

| Manufacturer Part Number: | DC1608A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - LED Drivers |
| Available Quantity: | 9020 Pieces |
| Unit Price: | Quote by Email |
| Description: | LT3745 16, Non-Isolated Output LED Driver Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1608A Datasheet |
| Internal Part Number | 898-DC1608A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | QuikEval System LT3745 Demo Circuit | |
| Design Resources | DC1608A Design File DC1608A Schematic Development Tool Selector Lighting Product Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - LED Drivers | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Current - Output / Channel | 50mA | |
| Outputs and Type | 16, Non-Isolated | |
| Voltage - Output | - | |
| Features | Dimmable | |
| Voltage - Input | 9 V ~ 40 V | |
| Supplied Contents | Board | |
| Utilized IC / Part | LT3745 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1608A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1608A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1608A is new and unused, you can buy DC1608A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1608A.
