Manufacturer Part Number: | DC1602A |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9020 Pieces |
Unit Price: | Quote by Email |

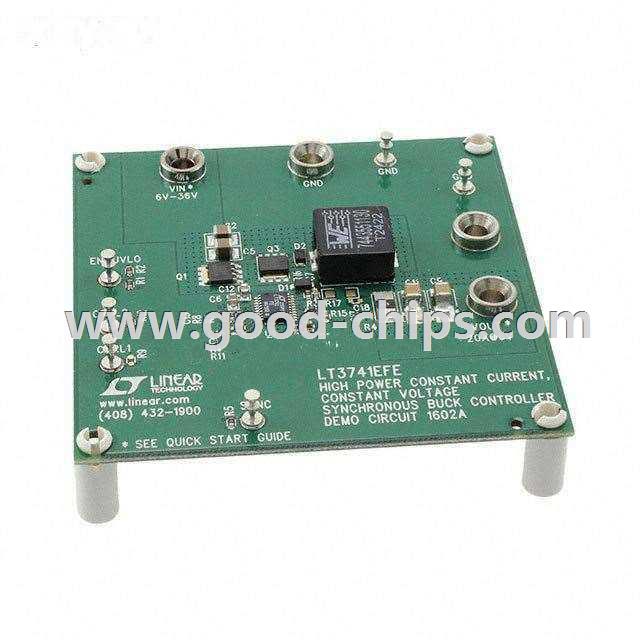

Description: | LT3741 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC1602A Datasheet |
Internal Part Number | 898-DC1602A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Software Download | LTspice IV for Windows LTspice IV for Mac OS X 10.7+ LT3741 Demo Circuit | |
Design Resources | DC1602A Design Files DC1602A Schematic Development Tool Selector | |
Reference Design Library | DC1582B-B(#1): 50 ~ 400mV in, 2.5 ~ 4.5V Out | |
Online Catalog | LT3741 Demonstration Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Linear Technology | |
Series | - | |
Part Status | Active | |
Main Purpose | DC/DC, Step Down | |
Outputs and Type | 1, Non-Isolated | |
Power - Output | - | |
Voltage - Output | 6V | |
Current - Output | 20A | |
Voltage - Input | 12 V ~ 24 V | |
Regulator Topology | Buck | |
Frequency - Switching | 420kHz | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | LT3741 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC1602A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC1602A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1602A is new and unused, you can buy DC1602A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1602A.
