| Manufacturer Part Number: | DC1595A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - LED Drivers |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |

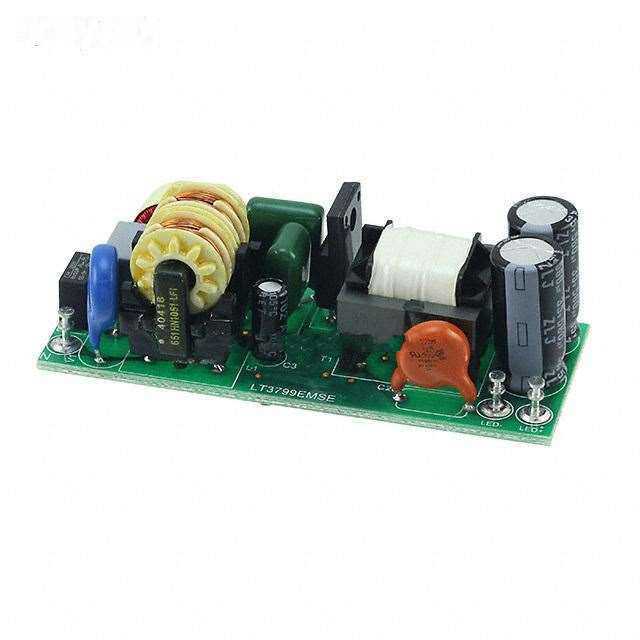

| Description: | LT3799 1, Isolated Output LED Driver Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1595A Datasheet |
| Internal Part Number | 898-DC1595A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | LTspice IV for Windows LTspice IV for Mac OS X 10.7+ LT3799 Demo Circuit | |
| Design Resources | DC1595A Design Files DC1595A Schematic Development Tool Selector Lighting Product Selector | |
| Reference Design Library | DC1595A: 1A @ 25V Max, 90 ~ 270V in, Isolated | |
| Online Catalog | LT3799 Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - LED Drivers | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Current - Output / Channel | 1A | |
| Outputs and Type | 1, Isolated | |
| Voltage - Output | 25V | |
| Features | Dimmable | |
| Voltage - Input | 90 ~ 270 VAC | |
| Supplied Contents | Board | |
| Utilized IC / Part | LT3799 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1595A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1595A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1595A is new and unused, you can buy DC1595A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1595A.
