Manufacturer Part Number: | DC1562B-L |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation and Demonstration Boards and Kits |
Available Quantity: | 9015 Pieces |
Unit Price: | Quote by Email |

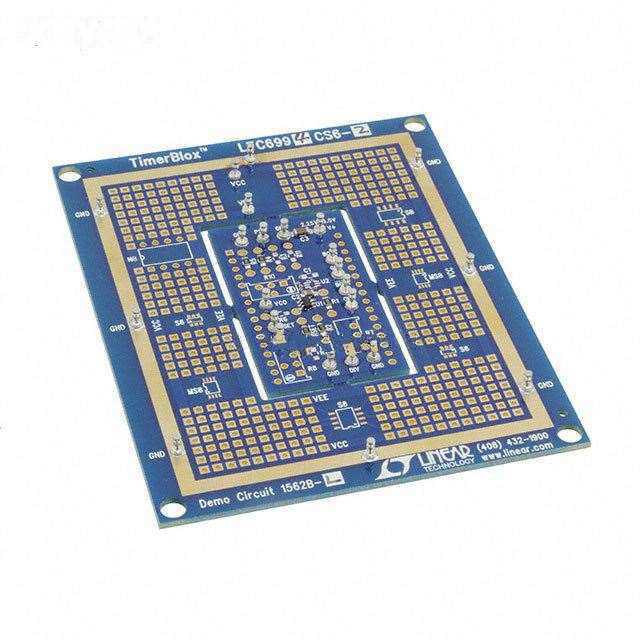

Description: | LTC6994-2 TimerBlox® Series Timing, Delay Line Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC1562B-L Datasheet |
Internal Part Number | 898-DC1562B-L | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Online Catalog | LTC6994-1 and LTC6994-2 Demonstration Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation and Demonstration Boards and Kits | |
Manufacturer | Linear Technology | |
Series | TimerBlox® | |
Part Status | Active | |
Main Purpose | Timing, Delay Line | |
Embedded | No | |
Utilized IC / Part | LTC6994-2 | |
Primary Attributes | 100ms Falling-Edge and Rising-Edge Delay | |
Secondary Attributes | 2.25V ~ 5.5V Supply | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC1562B-L | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC1562B-L is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1562B-L is new and unused, you can buy DC1562B-L Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1562B-L.
