| Manufacturer Part Number: | DC1560A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |

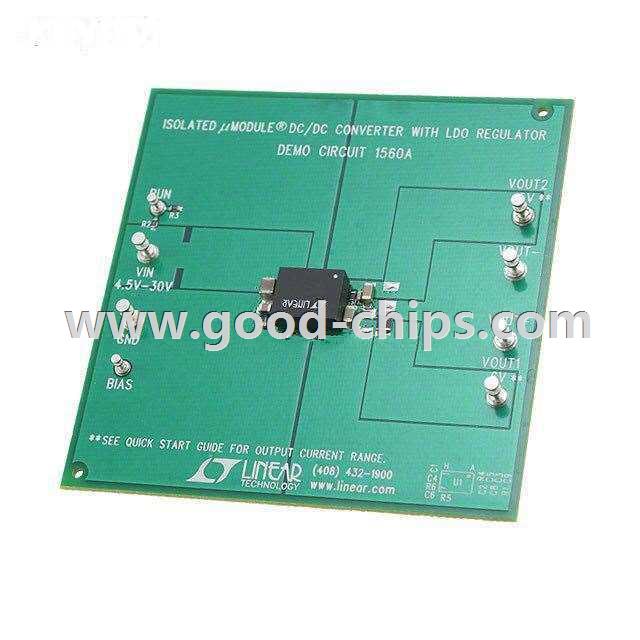

| Description: | LTM8048 µModule® DC/DC, Step Down with LDO 2, Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Not applicable / Not applicable |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1560A Datasheet |
| Internal Part Number | 898-DC1560A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LTM8047 and LTM8048 1.5W, 725 VDC Isolated Micromodule Converter | |
| Software Download | LTspice IV for Windows LTspice IV for Mac OS X 10.7+ | |
| Design Resources | DC1560A Design File DC1560A Schematic Development Tool Selector | |
| Reference Design Library | DC1560A: Isolated 5V @ 300mA, 4.5 ~ 30V in | |
| Online Catalog | LTM8048 Demo Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Linear Technology | |
| Series | µModule® | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down with LDO | |
| Outputs and Type | 2, Isolated | |
| Power - Output | - | |
| Voltage - Output | 5V, 6V | |
| Current - Output | 300mA | |
| Voltage - Input | 4.5 V ~ 30 V | |
| Regulator Topology | Flyback | |
| Frequency - Switching | - | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | LTM8048 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1560A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1560A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1560A is new and unused, you can buy DC1560A Linear Technology with us at a very low price and quick delivery.
