| Manufacturer Part Number: | DC1559A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |

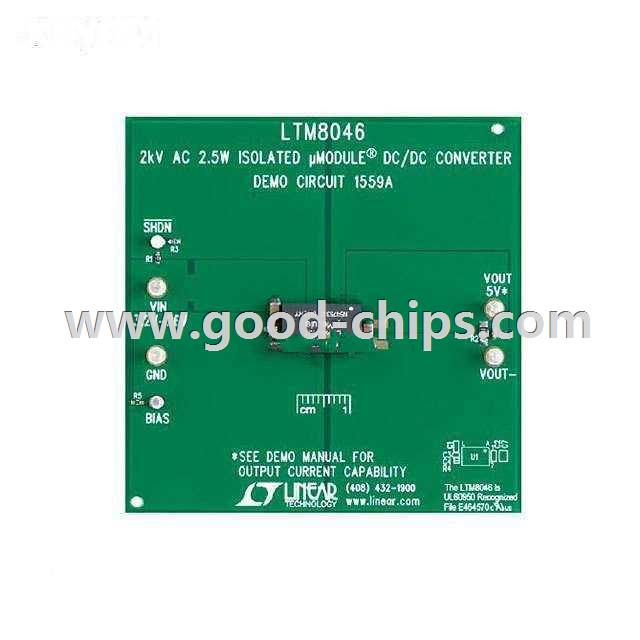

| Description: | LTM8046 µModule® DC/DC Converter 1, Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1559A Datasheet |
| Internal Part Number | 898-DC1559A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | LTspice IV for Windows LTspice IV for Mac OS X 10.7+ | |
| Design Resources | DC1559A Design Files DC1559A Schematic | |
| Online Catalog | LTM8046 Demonstration Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Linear Technology | |
| Series | µModule® | |
| Part Status | Active | |
| Main Purpose | DC/DC Converter | |
| Outputs and Type | 1, Isolated | |
| Power - Output | - | |
| Voltage - Output | 5V | |
| Current - Output | 550mA | |
| Voltage - Input | 3.2 V ~ 26 V | |
| Regulator Topology | - | |
| Frequency - Switching | - | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | LTM8046 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1559A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1559A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1559A is new and unused, you can buy DC1559A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1559A.
