| Manufacturer Part Number: | DC1496B-A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |

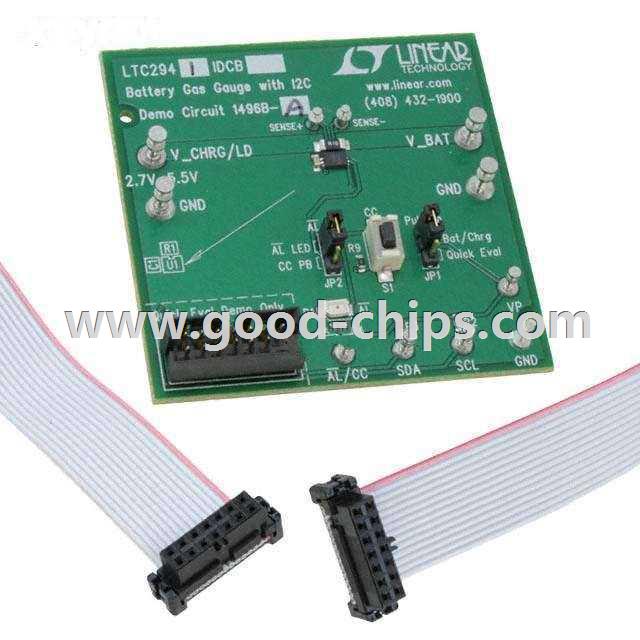

| Description: | LTC2941 - Power Management, Fuel Gauge Evaluation Board |
| Lead Free Status / RoHS Status: | Not applicable / Not applicable |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1496B-A Datasheet |
| Internal Part Number | 898-DC1496B-A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | QuikEval System | |
| Design Resources | DC1496B Design Files DC1496B Schematic Development Tool Selector | |
| Online Catalog | LTC2941, LTC2941-1 and LTC2942-1 Demonstration Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Power Management, Fuel Gauge | |
| Embedded | No | |
| Utilized IC / Part | LTC2941 | |
| Primary Attributes | I²C, SMBus Interfaces | |
| Secondary Attributes | LED Status Indicators | |
| Supplied Contents | Board, Cable | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1496B-A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1496B-A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1496B-A is new and unused, you can buy DC1496B-A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1496B-A.
