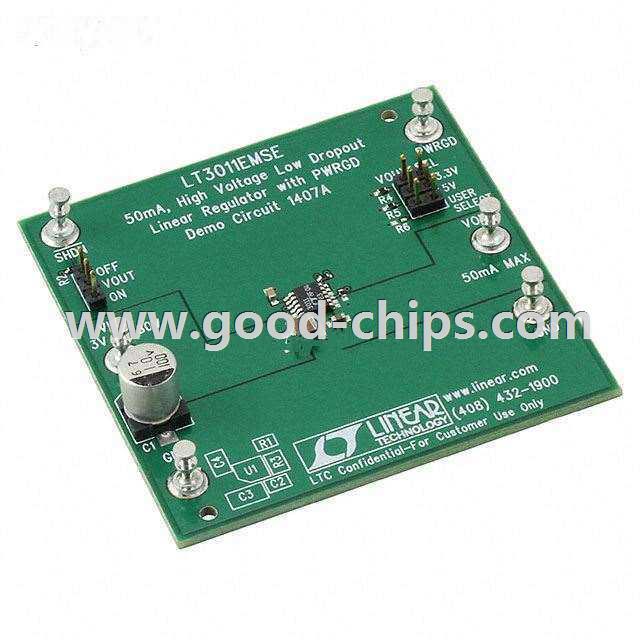

| Manufacturer Part Number: | DC1407A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - Linear Voltage Regulators |
| Available Quantity: | 9016 Pieces |
| Unit Price: | Quote by Email |
| Description: | LT3011 1 - Single Channels per IC Positive Adjustable Linear Voltage Regulator Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1407A Datasheet |
| Internal Part Number | 898-DC1407A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | LTspice IV for Windows LTspice IV for Mac OS X 10.7+ LT3011 Demo Circuit | |
| Design Resources | DC1407A Design File DC1407A Schematic Development Tool Selector | |
| Online Catalog | LT3011EMSE Demonstration Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Linear Voltage Regulators | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Channels per IC | 1 - Single | |
| Voltage - Output | 3.3V or 5V | |
| Current - Output | 50mA | |
| Voltage - Input | 3 V ~ 80 V | |
| Regulator Type | Positive Adjustable | |
| Operating Temperature | -40°C ~ 125°C | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | LT3011 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1407A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1407A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1407A is new and unused, you can buy DC1407A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1407A.
