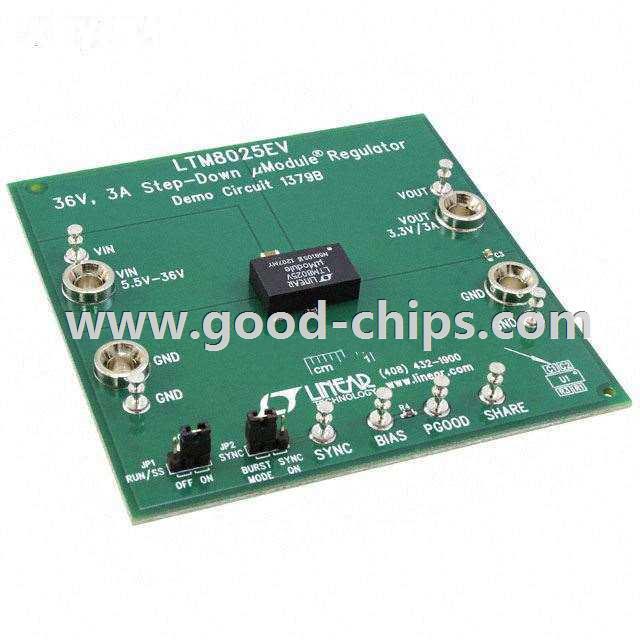

| Manufacturer Part Number: | DC1379B |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |
| Description: | LTM8025 µModule® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Not applicable / Not applicable |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1379B Datasheet |
| Internal Part Number | 898-DC1379B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | DC1379B Design Files DC1379B Schematic Development Tool Selector | |
| Reference Design Library | DC1379B: 3.3V @ 3A, 5.5 ~ 36V in, Inductor On-Chip | |
| Online Catalog | LTM8025 Demo Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Linear Technology | |
| Series | µModule® | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 1, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 3.3V | |
| Current - Output | 3A | |
| Voltage - Input | 5.5 V ~ 36 V | |
| Regulator Topology | Buck | |
| Frequency - Switching | 250kHz ~ 2MHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | LTM8025 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1379B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1379B is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1379B is new and unused, you can buy DC1379B Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1379B.
