| Manufacturer Part Number: | DC1297B |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |

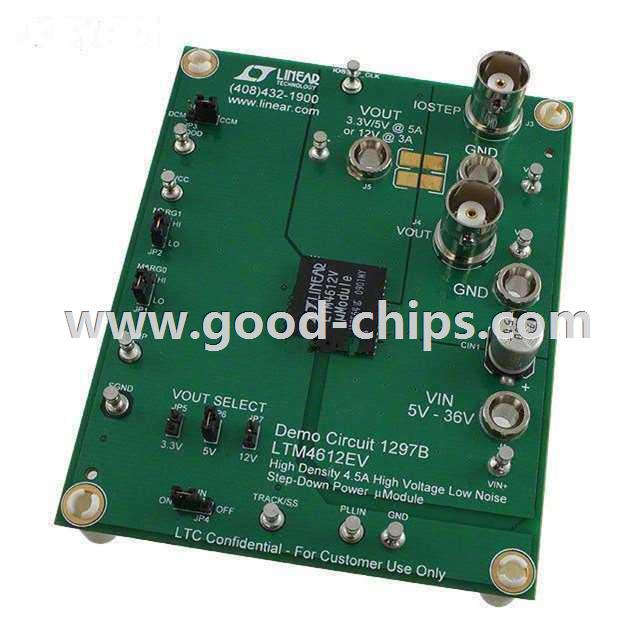

| Description: | LTM4612 µModule® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Not applicable / Not applicable |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1297B Datasheet |
| Internal Part Number | 898-DC1297B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | µModule® Family of EN55022 Class B Certified Regulators | |
| Software Download | LTspice IV for Windows LTspice IV for Mac OS X 10.7+ | |
| Design Resources | LTM4612 Spice Model DC1297B Design Files DC1297B Schematic LTM4612EV Symbol and Footprint Development Tool Selector | |
| Reference Design Library | DC1297B: 3.3V or 5V @ 5A (or 12V @ 5A), 5 ~ 36V in | |
| Online Catalog | LTM4612 Demo Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Linear Technology | |
| Series | µModule® | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 1, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 3.3V, 5V, 12V | |
| Current - Output | 5A | |
| Voltage - Input | 5 V ~ 36 V | |
| Regulator Topology | Buck | |
| Frequency - Switching | 850kHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | LTM4612 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1297B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1297B is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1297B is new and unused, you can buy DC1297B Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1297B.
