Manufacturer Part Number: | DC1283A |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation Boards - Linear Voltage Regulators |
Available Quantity: | 9013 Pieces |
Unit Price: | Quote by Email |

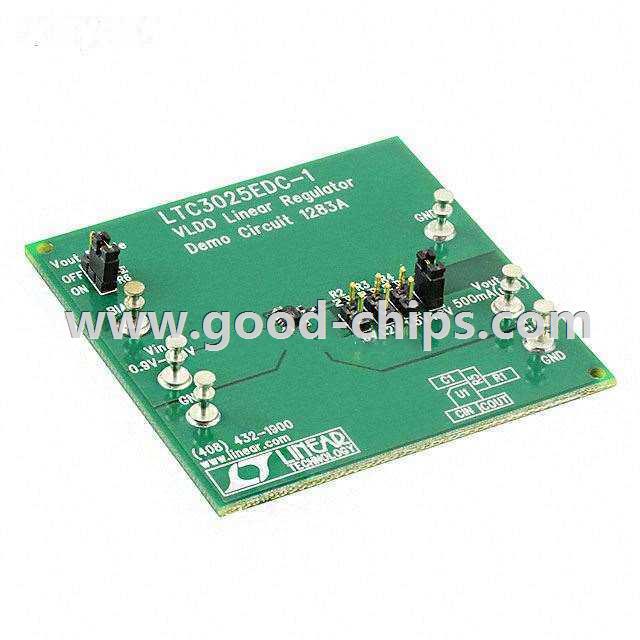

Description: | LTC3025-1 1 - Single Channels per IC Positive Adjustable Linear Voltage Regulator Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC1283A Datasheet |
Internal Part Number | 898-DC1283A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | DC1283A Design File DC1283A Schematic Development Tool Selector | |
Online Catalog | LTC3025-1 Evaluation Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Linear Voltage Regulators | |
Manufacturer | Linear Technology | |
Series | - | |
Part Status | Active | |
Channels per IC | 1 - Single | |
Voltage - Output | 0.8V, 1.2V, 1.5V or 1.8V | |
Current - Output | 500mA | |
Voltage - Input | 0.9 V ~ 5.5 V | |
Regulator Type | Positive Adjustable | |
Operating Temperature | -40°C ~ 125°C | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | LTC3025-1 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC1283A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC1283A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1283A is new and unused, you can buy DC1283A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1283A.
