| Manufacturer Part Number: | DC1192A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - Op Amps |
| Available Quantity: | 9025 Pieces |
| Unit Price: | Quote by Email |

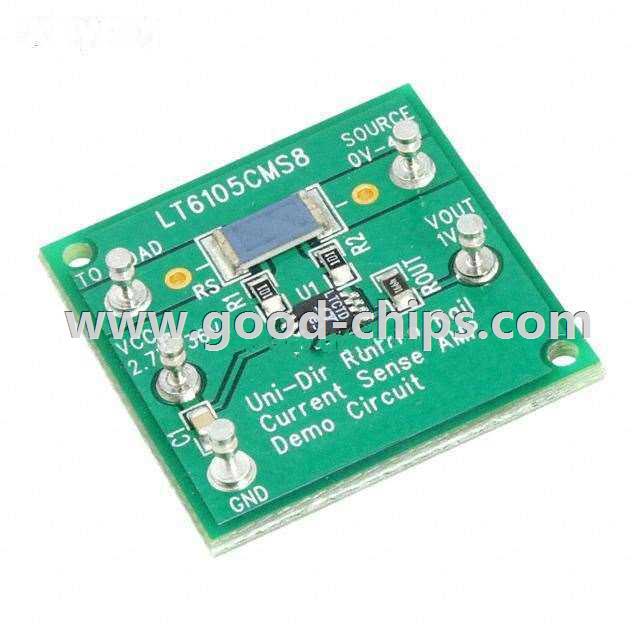

| Description: | LT6105 1 - Single Channels per IC Current Sense Amplifier Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1192A Datasheet |
| Internal Part Number | 898-DC1192A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | DC1192A Schematic DC1192A Design File Development Tool Selector | |
| Online Catalog | LT6105 Demonstration Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Op Amps | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Channels per IC | 1 - Single | |
| Amplifier Type | Current Sense | |
| Output Type | Single-Ended | |
| Slew Rate | 2 V/µs | |
| -3db Bandwidth | 100kHz | |
| Current - Output / Channel | 1mA | |
| Operating Temperature | 0°C ~ 70°C | |
| Current - Supply (Main IC) | 240µA | |
| Voltage - Supply, Single/Dual (±) | 2.85 V ~ 36 V | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | LT6105 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1192A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1192A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1192A is new and unused, you can buy DC1192A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1192A.
