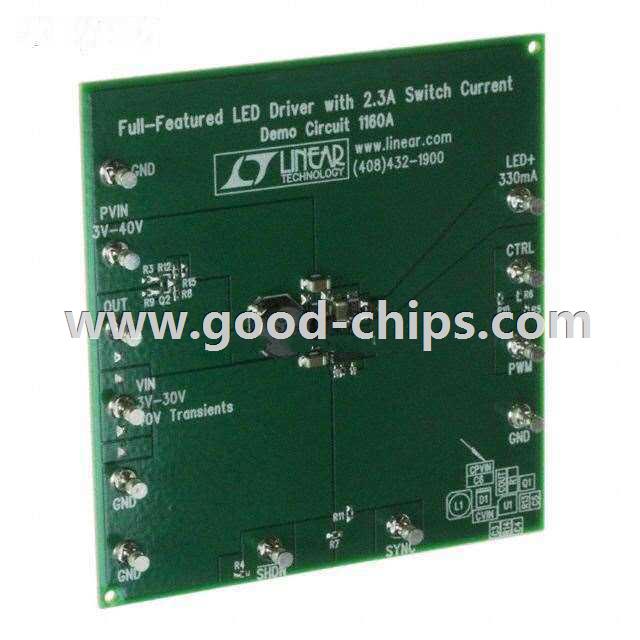

| Manufacturer Part Number: | DC1160A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - LED Drivers |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |
| Description: | LT3518 1, Non-Isolated Output LED Driver Evaluation Board |
| Lead Free Status / RoHS Status: | Not applicable / Not applicable |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1160A Datasheet |
| Internal Part Number | 898-DC1160A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | LTspice IV for Windows LTspice IV for Mac OS X 10.7+ | |
| Design Resources | DC1160A Design File DC1160A Schematic LT3518 Spice Models Development Tool Selector Lighting Product Selector | |
| Reference Design Library | DC1160A: 330mA up to 40V, 3 ~ 40V in | |
| Online Catalog | LT3518 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - LED Drivers | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Current - Output / Channel | 330mA | |
| Outputs and Type | 1, Non-Isolated | |
| Voltage - Output | 6.5 V ~ 40 V | |
| Features | Dimmable, Shutdown | |
| Voltage - Input | 6.5 V ~ 30 V | |
| Supplied Contents | Board | |
| Utilized IC / Part | LT3518 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1160A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1160A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1160A is new and unused, you can buy DC1160A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1160A.
