| Manufacturer Part Number: | DC1058A-A |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |

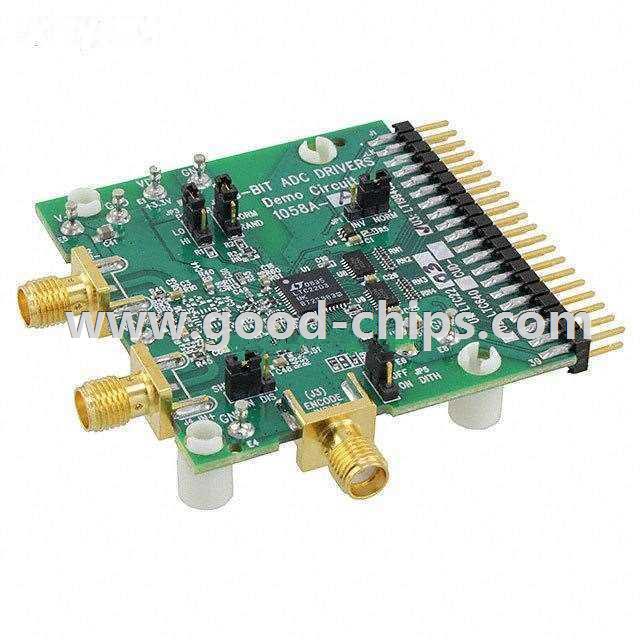

| Description: | LT1994, LTC2203 - 16 Bit 25M Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DC1058A-A Datasheet |
| Internal Part Number | 898-DC1058A-A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | PScope | |
| Design Resources | Development Tool Selector | |
| Featured Product | High Speed ADCs | |
| Online Catalog | LTC2203 and LT1994 Demonstration Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Part Status | Active | |
| Number of A/D Converters | 1 | |
| Number of Bits | 16 | |
| Sampling Rate (Per Second) | 25M | |
| Data Interface | Parallel | |
| Input Range | 2.5 Vpp | |
| Power (Typ) @ Conditions | 220mW @ 25MSPS | |
| Utilized IC / Part | LT1994, LTC2203 | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DC1058A-A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DC1058A-A is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1058A-A is new and unused, you can buy DC1058A-A Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1058A-A.
