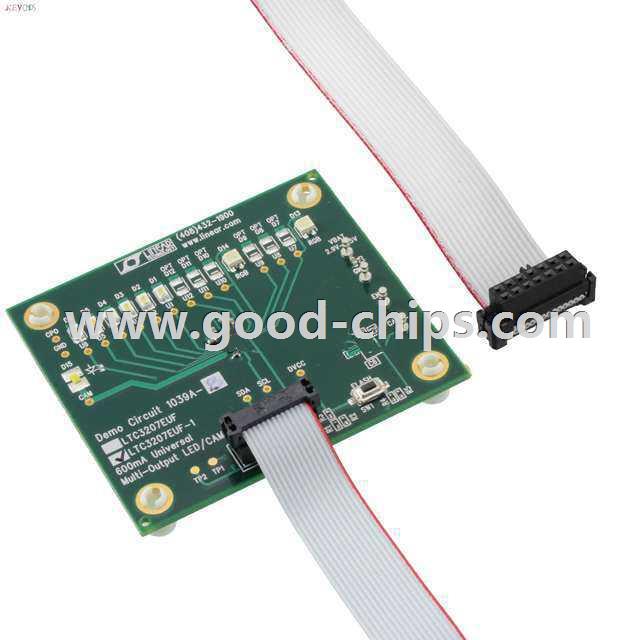

Manufacturer Part Number: | DC1039A-B |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Evaluation Boards - LED Drivers |
Available Quantity: | 9013 Pieces |
Unit Price: | Quote by Email |
Description: | LTC3207-1 12, Non-Isolated Output LED Driver Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DC1039A-B Datasheet |
Internal Part Number | 898-DC1039A-B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Software Download | QuikEval System | |
Design Resources | DC1039A Design File DC1039A Schematic Development Tool Selector Lighting Product Selector | |
Reference Design Library | DC1039A-B: 12 Ch @ 27.5mA, 2.9~5.5Vin, Charge pump | |
Online Catalog | LTC3207 Evaluation Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - LED Drivers | |
Manufacturer | Linear Technology | |
Series | - | |
Part Status | Active | |
Current - Output / Channel | 600mA | |
Outputs and Type | 12, Non-Isolated | |
Voltage - Output | - | |
Features | Dimmable, I²C Interface | |
Voltage - Input | 2.9 V ~ 5.5 V | |
Supplied Contents | Board, Cable | |
Utilized IC / Part | LTC3207-1 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DC1039A-B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DC1039A-B is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of DC1039A-B is new and unused, you can buy DC1039A-B Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DC1039A-B.
