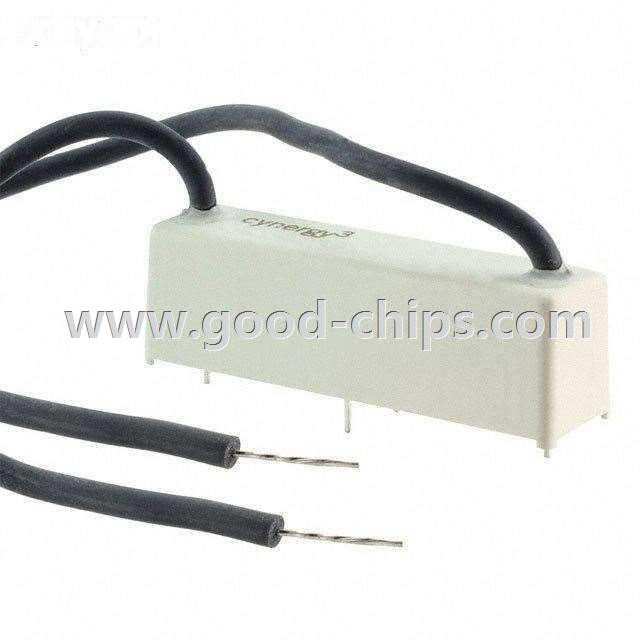

DBT72410F-HR

DBT72410F-HR
Manufacturer Part Number:DBT72410F-HR
Manufacturer:
Product Category:Signal Relays, Up to 2 Amps
Available Quantity:9030 Pieces
Unit Price:Quote by Email
Description:Reed Relay SPST-NC (1 Form B) Through Hole
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: DBT72410F-HR Datasheet
DBT72410F-HR´s Parameters
Internal Part Number898-DBT72410F-HR
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog D-HR Series
CategoryRelays
FamilySignal Relays, Up to 2 Amps
ManufacturerCynergy 3
SeriesD-HR
PackagingTray
Part StatusActive
Relay TypeReed
Coil TypeNon Latching
Coil Current26mA
Coil Voltage24VDC
Contact FormSPST-NC (1 Form B)
Contact Rating (Current)2A
Switching Voltage7000VAC, 7000VDC - Max
Turn On Voltage (Max)20 VDC
Turn Off Voltage (Min)4 VDC
Operate Time2ms
Release Time3ms
Features-
Mounting TypeThrough Hole
Termination StylePC Pin, Wire Leads
Contact MaterialTungsten (W)
Coil Power-
Coil Resistance925 Ohms
Operating Temperature-20°C ~ 70°C
Standard Package 20
Weight0.001 KG
ApplicationEmail for details
Replacement PartDBT72410F-HR
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

DBT72410F-HR is in stock for immediate shipping now. We are the distributor of Cynergy 3 all series components. The condition of DBT72410F-HR is new and unused, you can buy DBT72410F-HR Cynergy 3 with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for DBT72410F-HR.
