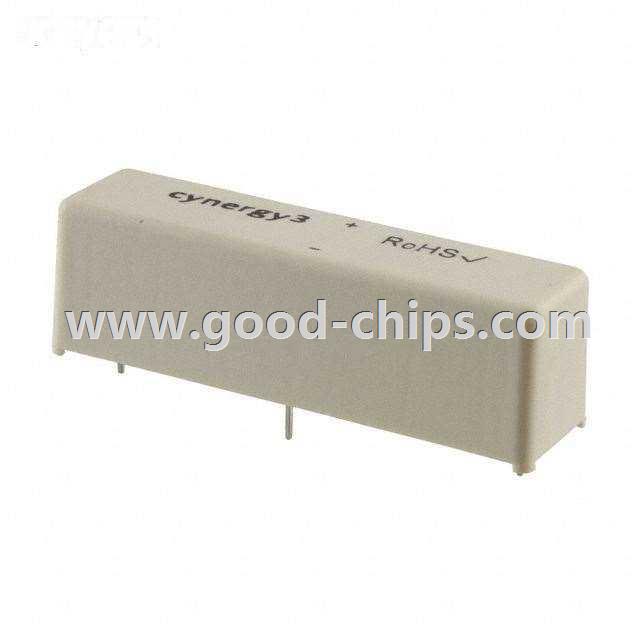

DBR72410

DBR72410
Manufacturer Part Number:DBR72410
Manufacturer:
Product Category:Power Relays, Over 2 Amps
Available Quantity:9102 Pieces
Unit Price:Quote by Email
Description:Reed Relay SPST-NC (1 Form B) 24VDC Coil Through Hole
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: DBR72410 Datasheet
DBR72410´s Parameters
Internal Part Number898-DBR72410
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Mfg Application NotesReed Relay Appl Notes
Online Catalog D Series
CategoryRelays
FamilyPower Relays, Over 2 Amps
ManufacturerCynergy 3
SeriesD
PackagingTray
Part StatusActive
Relay TypeReed
Coil TypeNon Latching
Coil Current25.9mA
Coil Voltage24VDC
Contact FormSPST-NC (1 Form B)
Contact Rating (Current)3A
Switching Voltage1000VAC, 1000VDC - Max
Turn On Voltage (Max)20 VDC
Turn Off Voltage (Min)4 VDC
Operate Time2ms
Release Time3ms
Features-
Mounting TypeThrough Hole
Termination StylePC Pin
Contact MaterialRhodium (Rh)
Coil Power-
Coil Resistance925 Ohms
Operating Temperature-20°C ~ 70°C
Standard Package 20
Weight0.001 KG
ApplicationEmail for details
Replacement PartDBR72410
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

DBR72410 is in stock for immediate shipping now. We are the distributor of Cynergy 3 all series components. The condition of DBR72410 is new and unused, you can buy DBR72410 Cynergy 3 with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for DBR72410.
