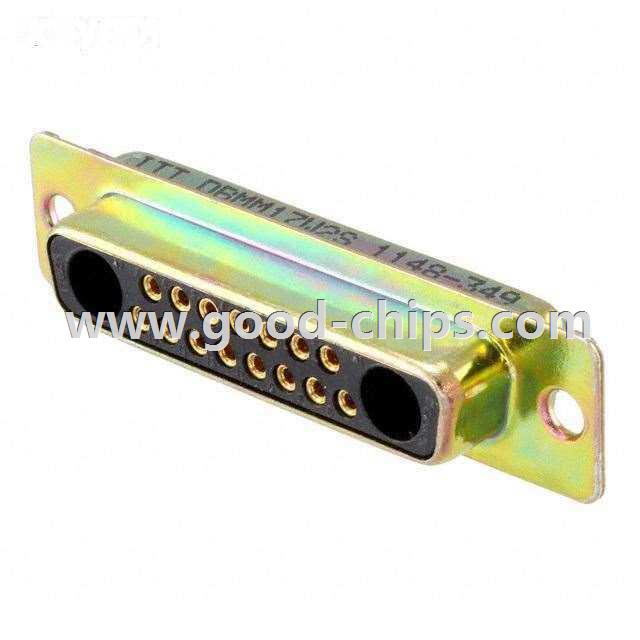

| Manufacturer Part Number: | DBMM-17W2S |
|---|---|
| Manufacturer: | ITT Cannon, LLC |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9035 Pieces |
| Unit Price: | Quote by Email |
| Description: | 17 (15 + 2 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector, Panel Mount Solder Cup |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DBMM-17W2S Datasheet |
| Internal Part Number | 898-DBMM-17W2S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | D-Subminiature Connector Series | |
| Online Catalog | MIL-DTL-24308, Combo D®, DMM Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | ITT Cannon, LLC | |
| Series | MIL-DTL-24308, Combo D®, D*MM | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | D-Sub, Combo | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 17 (15 + 2 Coax or Power) | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 3 (DB, B) - 17W2 | |
| Contact Type | Signal and Coax or Power (Not Included) | |
| Mounting Type | Panel Mount | |
| Flange Feature | Housing/Shell (Unthreaded) | |
| Termination | Solder Cup | |
| Features | Shielded | |
| Shell Material, Finish | Steel, Yellow Chromate Plated Zinc | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 50µin (1.27µm) | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | - | |
| Current Rating | 7.5A | |
| Housing Material | Polyester | |
| Color | Black | |
| Standard Package | 56 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DBMM-17W2S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DBMM-17W2S is in stock for immediate shipping now. We are the distributor of ITT Cannon, LLC all series components. The condition of DBMM-17W2S is new and unused, you can buy DBMM-17W2S ITT Cannon, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DBMM-17W2S.
