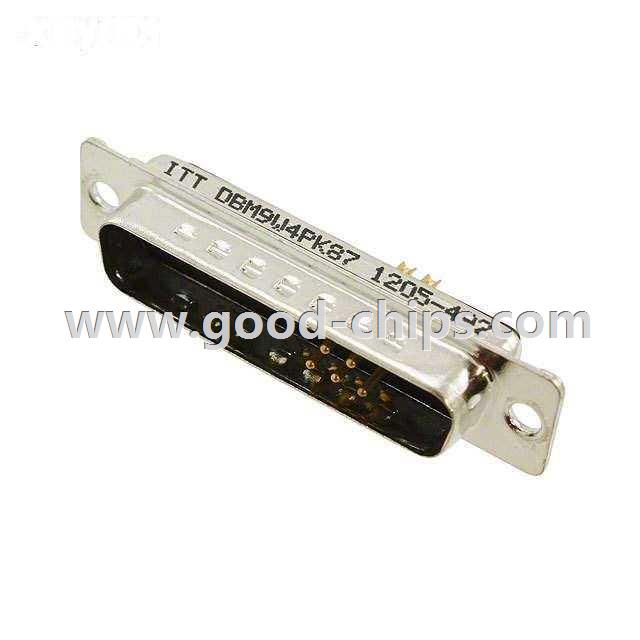

Manufacturer Part Number: | DBM-9W4P-K87 |
---|---|
Manufacturer: | ITT Cannon, LLC |
Product Category: | D-Sub Connectors |
Available Quantity: | 9179 Pieces |
Unit Price: | Quote by Email |
Description: | 9 (5 + 4 Coax or Power) Position D-Sub, Combo Plug, Male Pins Connector, Panel Mount Solder Cup |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | DBM-9W4P-K87 Datasheet |
Internal Part Number | 898-DBM-9W4P-K87 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | D-Subminiature Connector Series | |
Online Catalog | Combo D® D M Series | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | ITT Cannon, LLC | |
Series | Combo D®, D*M | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | D-Sub, Combo | |
Connector Type | Plug, Male Pins | |
Number of Positions | 9 (5 + 4 Coax or Power) | |
Number of Rows | 2 | |
Shell Size, Connector Layout | 3 (DB, B) - 9W4 | |
Contact Type | Signal and Coax or Power (Not Included) | |
Mounting Type | Panel Mount | |
Flange Feature | Housing/Shell (Unthreaded) | |
Termination | Solder Cup | |
Features | Grounding Indents, Shielded | |
Shell Material, Finish | Steel, Tin-Lead Plated | |
Contact Finish | Gold | |
Contact Finish Thickness | Flash | |
Ingress Protection | - | |
Operating Temperature | -55°C ~ 125°C | |
Voltage Rating | - | |
Current Rating | 7.5A | |
Housing Material | Polyester | |
Color | Black | |
Standard Package | 56 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | DBM-9W4P-K87 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
DBM-9W4P-K87 is in stock for immediate shipping now. We are the distributor of ITT Cannon, LLC all series components. The condition of DBM-9W4P-K87 is new and unused, you can buy DBM-9W4P-K87 ITT Cannon, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DBM-9W4P-K87.
