| Manufacturer Part Number: | DB6J316K0R |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 3 Independent Schottky 30V 100mA Surface Mount 6-SMD, Flat Leads |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | DB6J316K0R Datasheet |
| Internal Part Number | 898-DB6J316K0R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Junction Barrier Schottky Overview | |
| Featured Product | Wearables Technology Components | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Schottky Diode Array | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | Panasonic Electronic Components | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Configuration | 3 Independent | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 30V | |
| Current - Average Rectified (Io) (per Diode) | 100mA | |
| Voltage - Forward (Vf) (Max) @ If | 550mV @ 100mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 800ps | |
| Current - Reverse Leakage @ Vr | 15µA @ 30V | |
| Mounting Type | Surface Mount | |

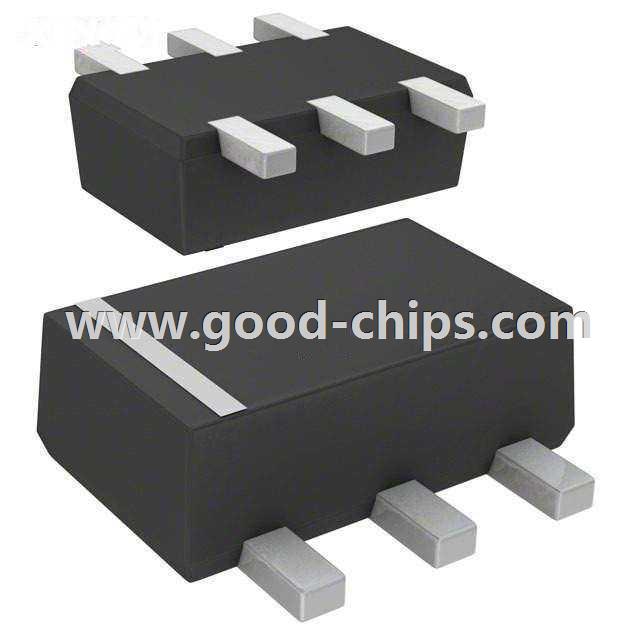

| Package / Case | 6-SMD, Flat Leads | |
| Supplier Device Package | SMini6-F3-B | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | DB6J316K0R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
DB6J316K0R is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of DB6J316K0R is new and unused, you can buy DB6J316K0R Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for DB6J316K0R.
